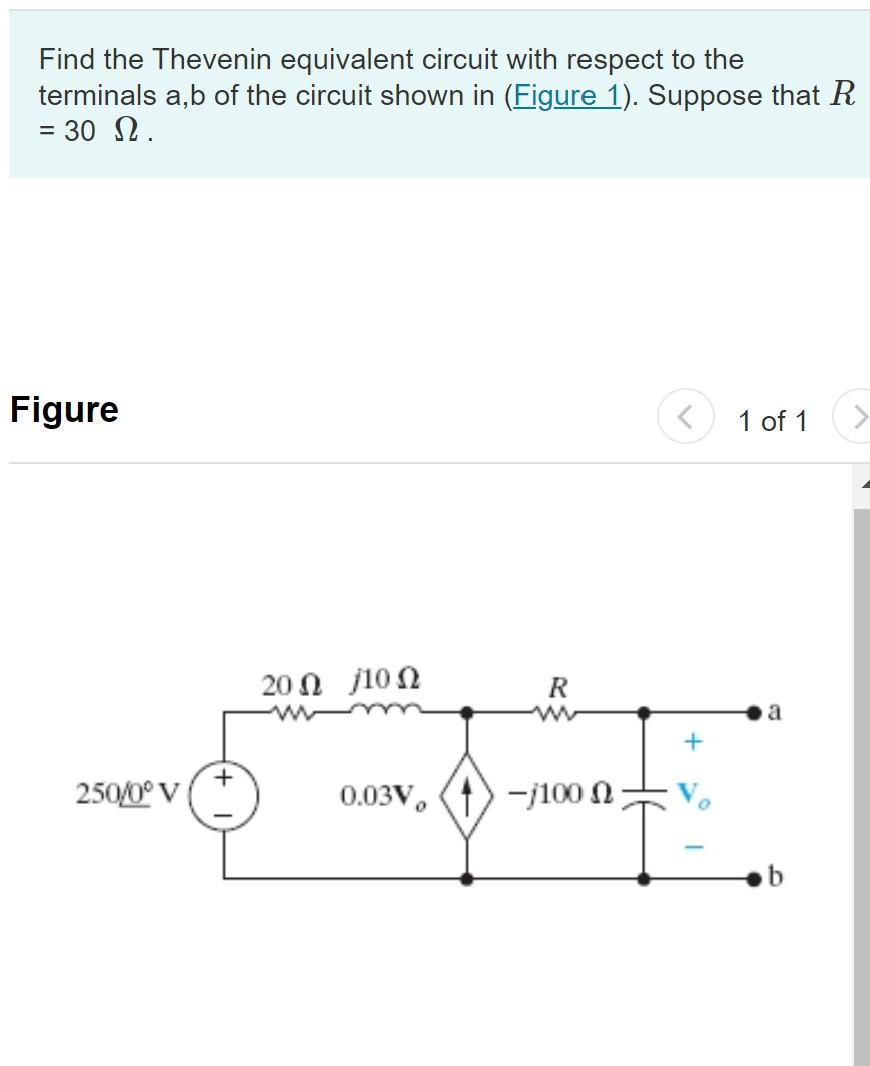

Plz answer Both parts Find the Thevenin equivalent circuit with respect to the terminals a, b of the circuit shown in (Figure 1). Suppose that R = 30 12. Figure 1 of 1 20 ? 10 ? R w a + ??) ???? 250/0V 0.03V -j100 ?: b Find the value of V Th. Express your answer in volts to three significant figures. Enter your answer in rectangular for

Question

Find the Thevenin equivalent circuit with respect to the
terminals a, b of the circuit shown in (Figure 1). Suppose that R
= Find the value of V Th.
Express your answer in volts to three significant figures. Enter your answer in rectangular form.
OO

Plz answer Both parts

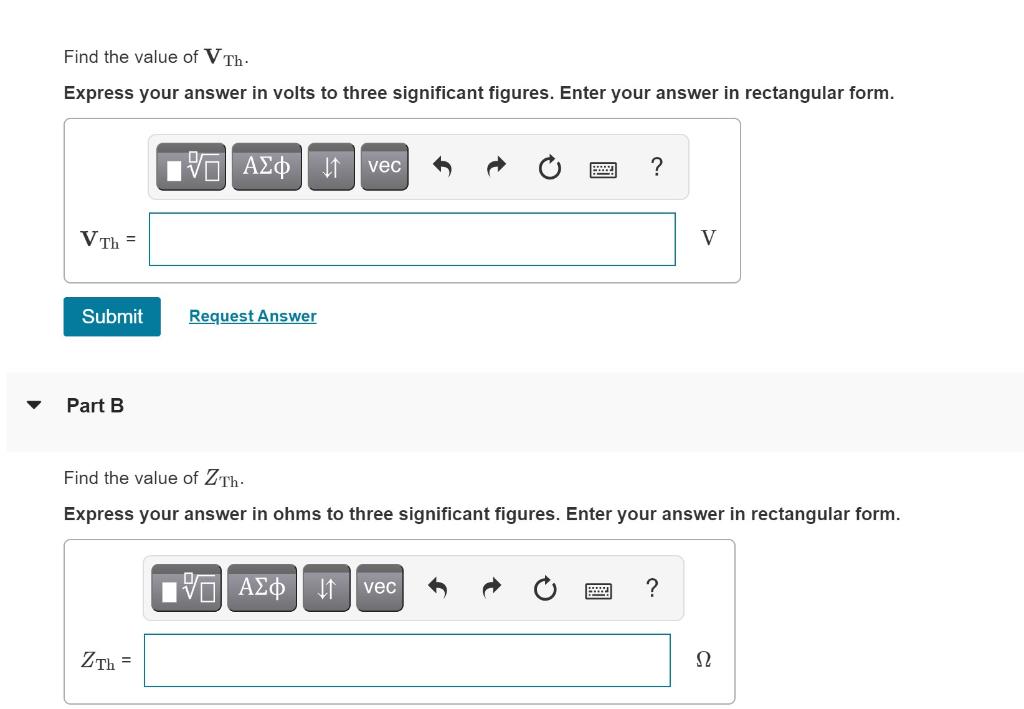

Find the Thevenin equivalent circuit with respect to the terminals a, b of the circuit shown in (Figure 1). Suppose that R = 30 12. Figure 1 of 1 20 ? 10 ? R w a + ??) ???? 250/0ºV 0.03V -j100 ?: b Find the value of V Th. Express your answer in volts to three significant figures. Enter your answer in rectangular form. OO ??? 11 vec ? V Th = V Submit Request Answer Part B Find the value of Th. Express your answer in ohms to three significant figures. Enter your answer in rectangular form. ??? ??? IT vec P! ? Zth = 12
