(Solved): Practice problems for op-amps Consider the circuit shown. a. Determine the gain. b. Determine the i ...

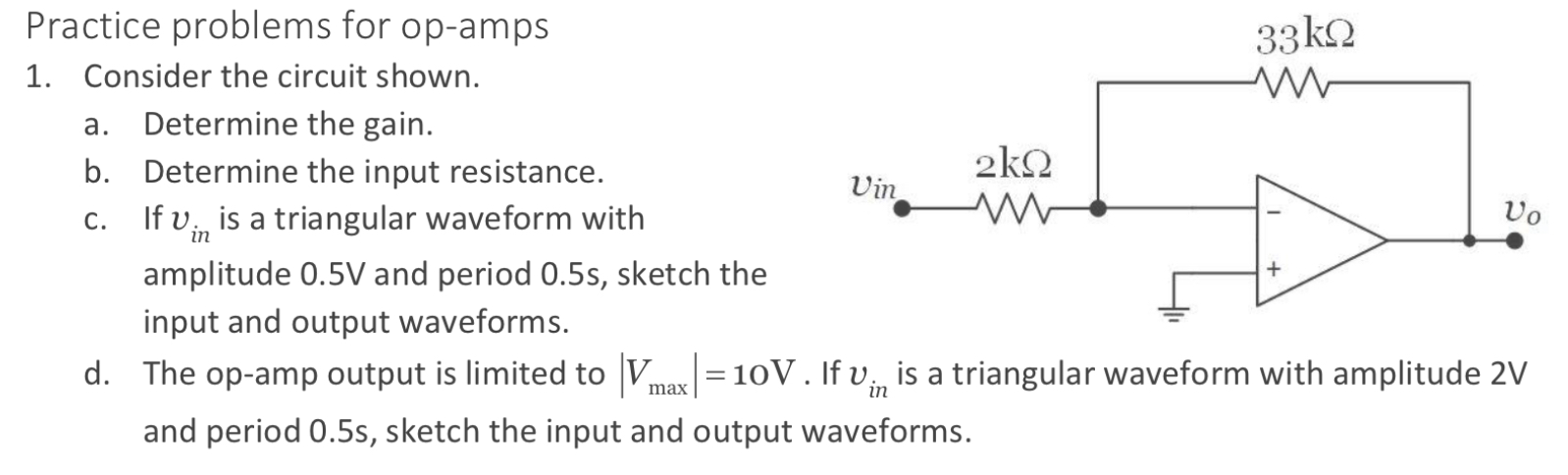

Practice problems for op-amps Consider the circuit shown. a. Determine the gain. b. Determine the input resistance. c. If
v_(in )is a triangular waveform with amplitude 0.5 V and period 0.5 s , sketch the input and output waveforms. d. The op-amp output is limited to
|V_(max)|=10V. If
v_(in )is a triangular waveform with amplitude 2 V and period 0.5 s , sketch the input and output waveforms.
