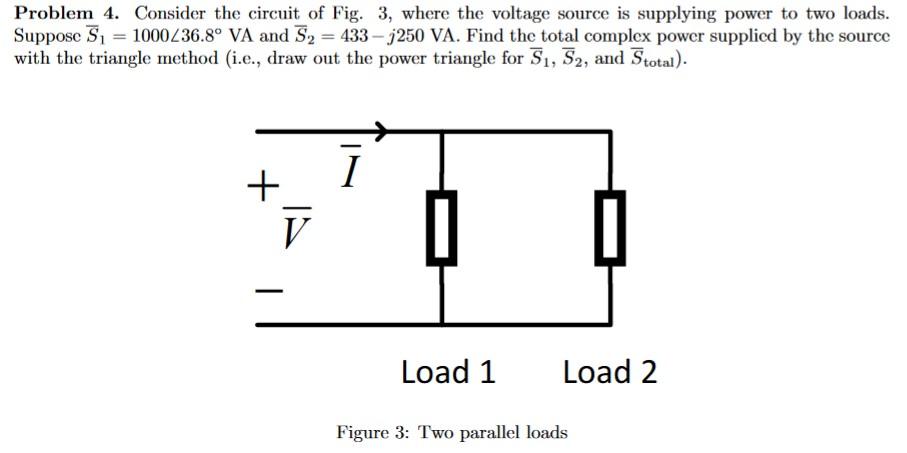

Problem 4. Consider the circuit of Fig. 3, where the voltage source is supplying power to two loads. Suppose \( \bar{S}_{1}=1000 \angle 36.8^{\circ} \mathrm{VA} \) and \( \bar{S}_{2}=433-j 250 \) VA. Find the total complex power supplice by the source with the triangle method (i.e., draw out the power triangle for \( \bar{S}_{1}, \bar{S}_{2} \), and \( \bar{S}_{\text {total }} \) ). Load \( 1 \quad \) Load 2 Figure 3: Two parallel loads
