(Solved): Problem \#4: Given the beam in figure 1, draw the shear and moment diagram for the loading configura ...

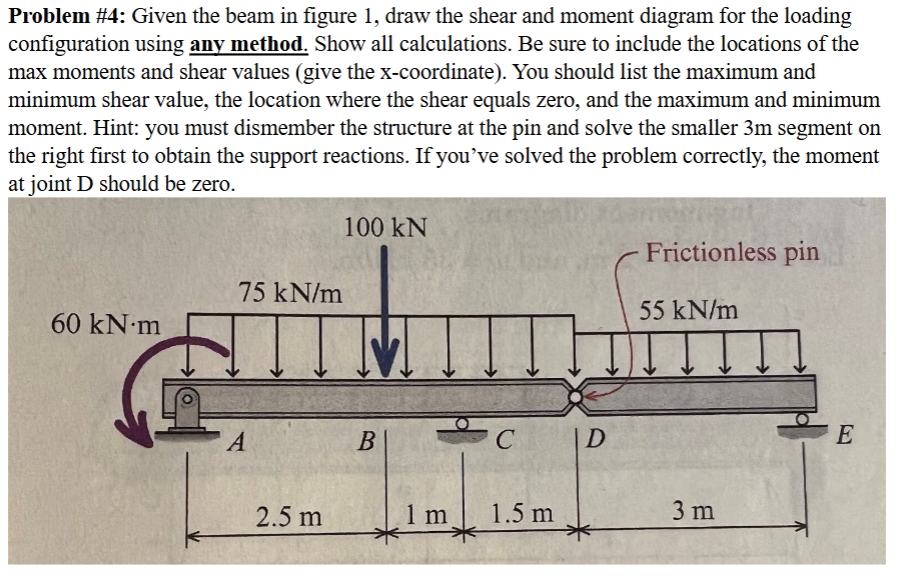

Problem \#4: Given the beam in figure 1, draw the shear and moment diagram for the loading configuration using any method. Show all calculations. Be sure to include the locations of the max moments and shear values (give the x-coordinate). You should list the maximum and minimum shear value, the location where the shear equals zero, and the maximum and minimum moment. Hint: you must dismember the structure at the pin and solve the smaller 3 m segment on the right first to obtain the support reactions. If you've solved the problem correctly, the moment at joint D should be zero.
