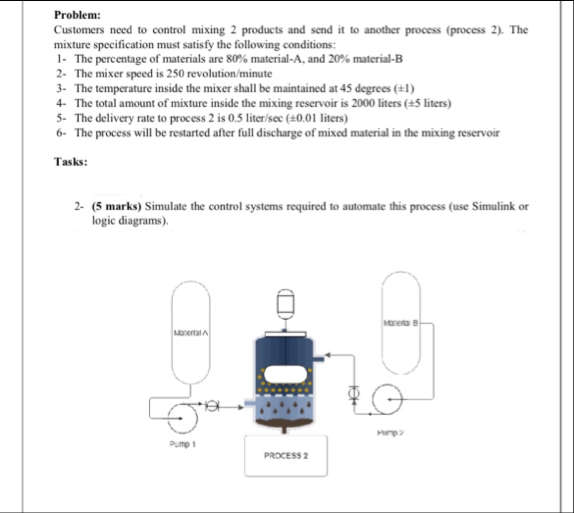

Problem: Customers need to control mixing 2 products and send it to another process (process 2 ). The mixture specification must satisfy the following conditions: 1- The percentage of materials are
80%material-A, and
20%material-B 2- The mixer speed is 250 revolution/minute 3- The temperature inside the mixer shall be maintained at 45 degrees (
+-1) 4- The total amount of mixture inside the mixing reservoir is 2000 liters (
+-5liters) 5 - The delivery rate to process 2 is 0.5 liter
/sec(
+-0.01liters) 6- The process will be restarted after full discharge of mixed material in the mixing reservoir Tasks: 2- (5 marks) Simulate the control systems required to automate this process (use Simulink or logic diagrams).
