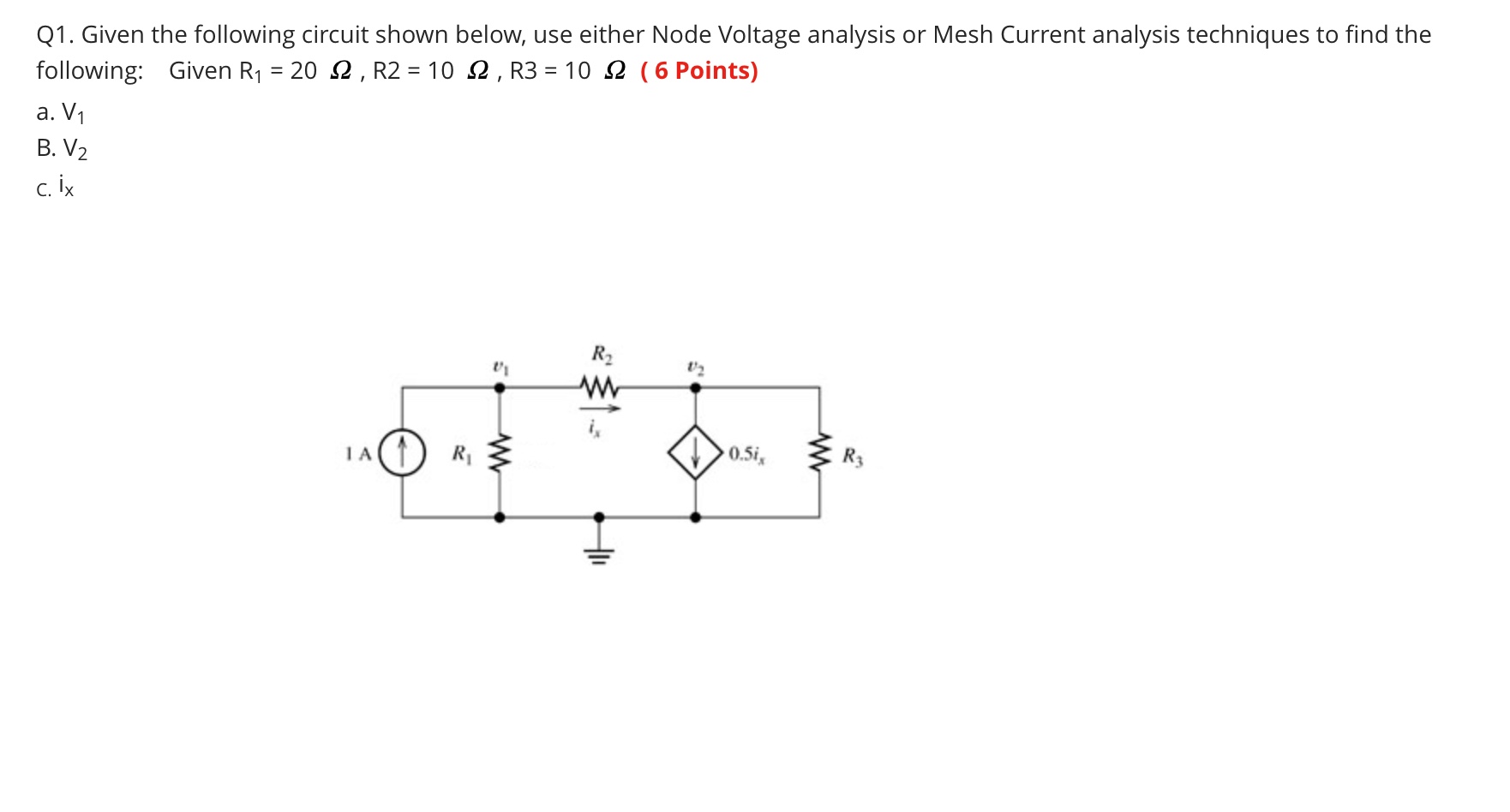

Q1. Given the following circuit shown below, use either Node Voltage analysis or Mesh Current analysis techniques to find the following: Given R_(1)=20\Omega ,R2=10\Omega ,R3=10\Omega ( 6 Points) a. V_(1) B. V_(2) c. i_(x)
