Q1. Suppose you are the engineer assigned to examine a new design for an enclosure. It was
decided that design given below wo

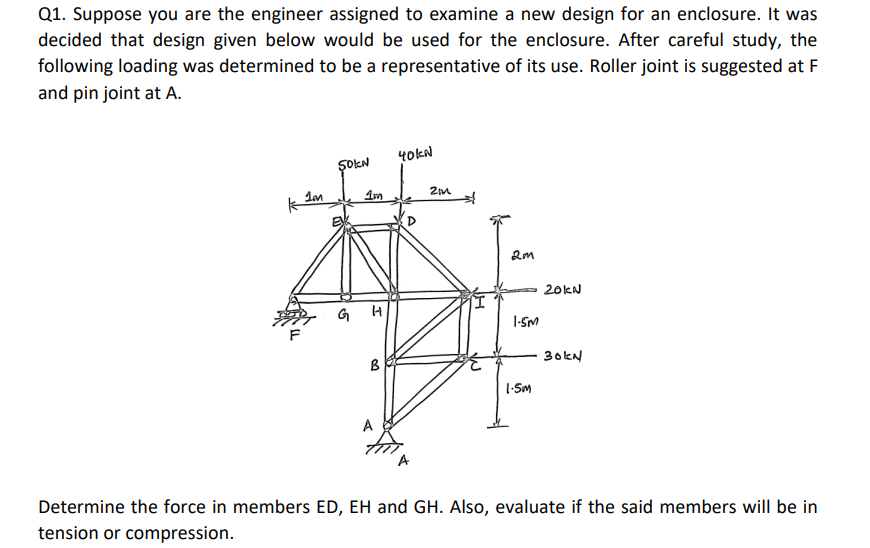

Q1. Suppose you are the engineer assigned to examine a new design for an enclosure. It was decided that design given below would be used for the enclosure. After careful study, the following loading was determined to be a representative of its use. Roller joint is suggested at F and pin joint at A. k 1m 50KN G 1m H B A 40KN 2M 2m 1.5m 1.5m 20KN 30KN Determine the force in members ED, EH and GH. Also, evaluate if the said members will be in tension or compression.
