(Solved): Q2. In the phasor-domain circuit shown in Figure below, the source current I = 5\angle 0\deg A, R1 ...

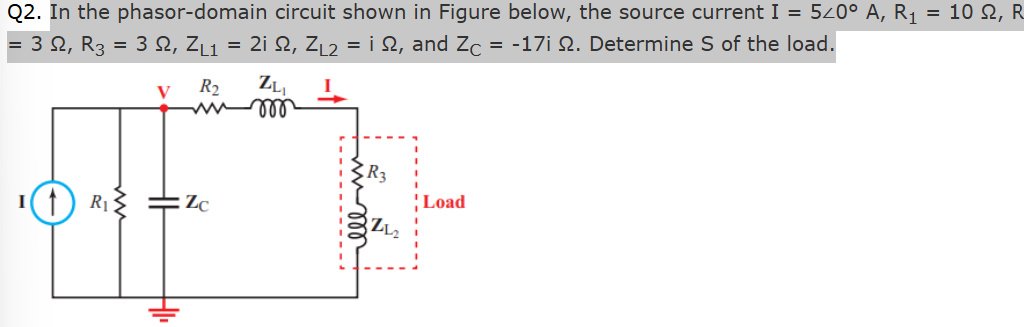

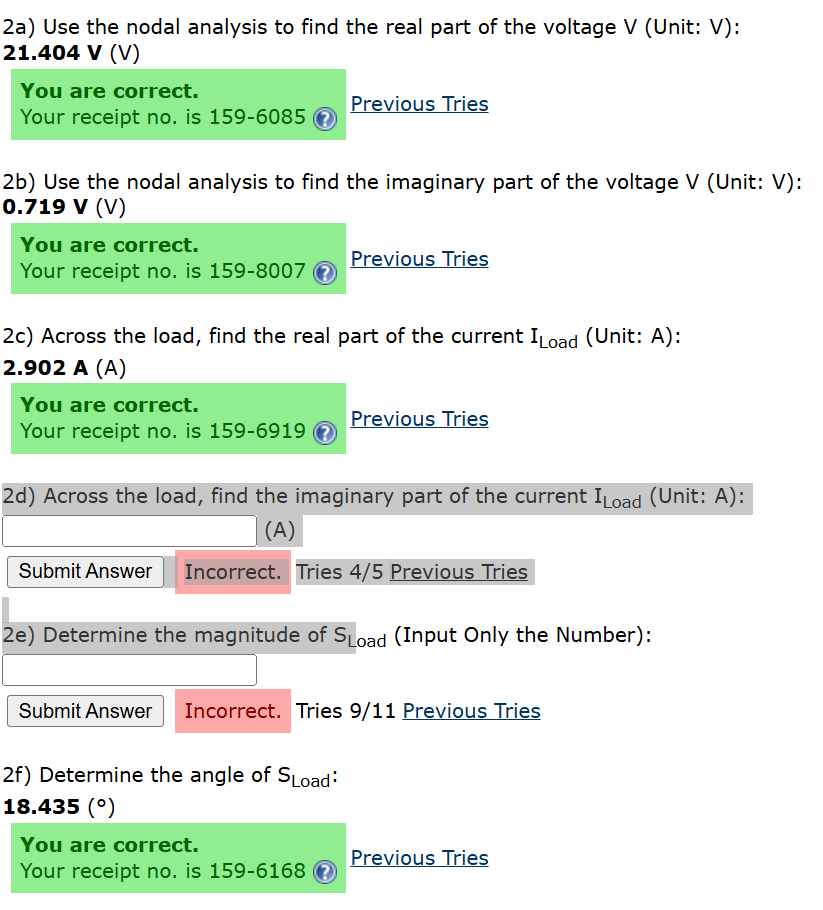

Q2. In the phasor-domain circuit shown in Figure below, the source current I = 5\angle 0\deg A, R1 = 10 Ω, R2 = 3 Ω, R3 = 3 Ω, ZL1 = 2i Ω, ZL2 = i Ω, and ZC = -17i Ω. Determine S of the load. please solve questions 2d and 2e i am attaching all of the trys that were wrong. also feel free to make a matlab to solve. 2aI_(Load ) (Unit: A):
2.902 A (A)
You are correct.
Your receipt no. is 159-6919
Previous Tries
2dI_(Load ) (Unit: A):
(A)
Submit Answer

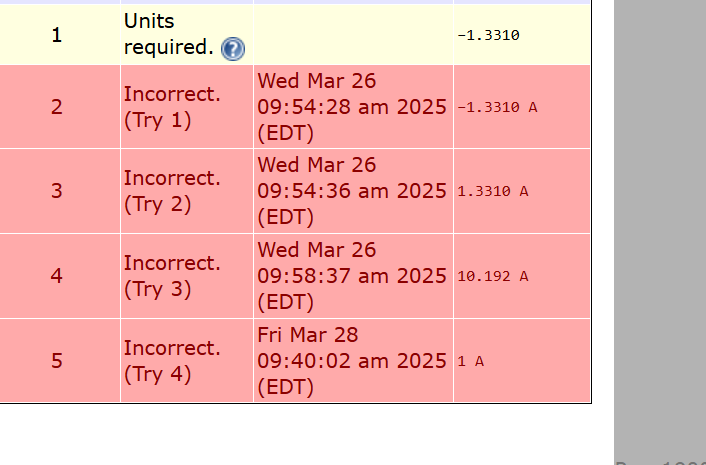

Tries( 4)/(5) Previous Tries
2eS_(Load ) (Input Only the Number):

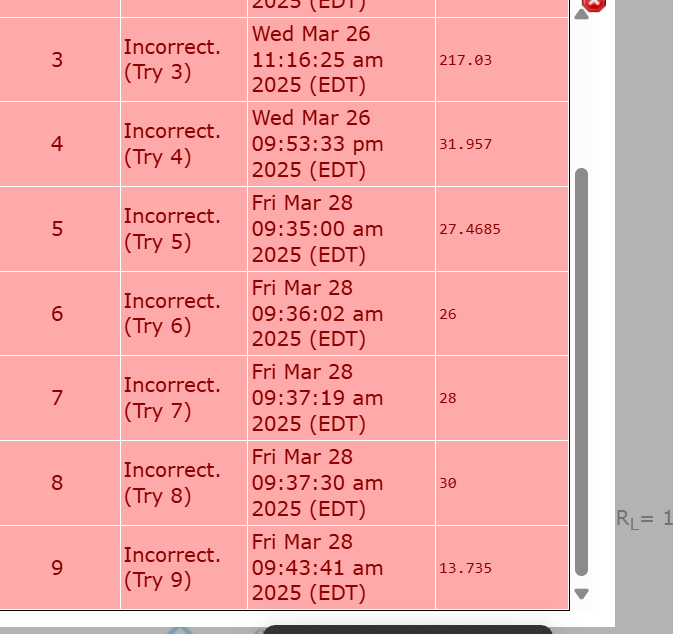

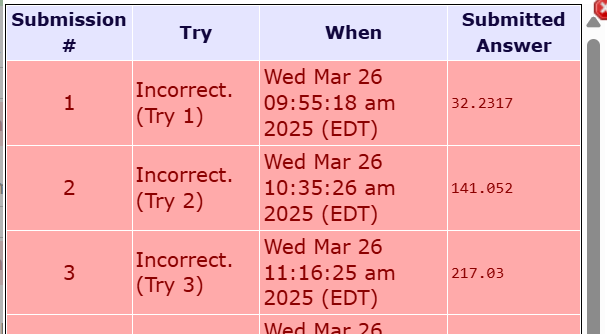

Tries( 9)/(11) Previous Tries
2fS_(Load ) :
18.435(\deg )
You are correct.
Your receipt no. is 159-6168
Previous Tries
