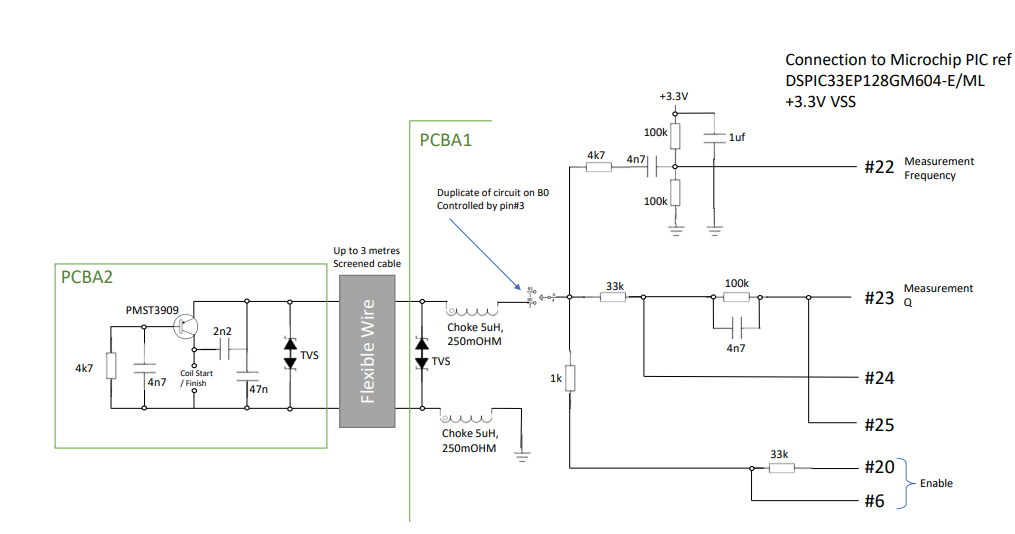

Query on TVS Diode and Choke. INSWER THIS PLZ In the described scenario we have Zener diodes placed either side of a length of cable. If that cable is removed (i.e. PCB 1 and 2 are combined to a single PCB) then surely the source of transients is removed also? A coil that is installed on a brittle iron core is examined by the circuit. A permanent magnet's poles are then placed with two of these assemblies on each. Ferrous particles are drawn to the magnet, and when they become a part of the measurement circuit, the frequency and current rhange. The difference in value from the reference is the meacured value. There are no additional irnn if
