(Solved): QUESTION 1: SINGLE - STAGE COMPRESSION Explain the difference between ideal and non- ideal gas? [4] ...

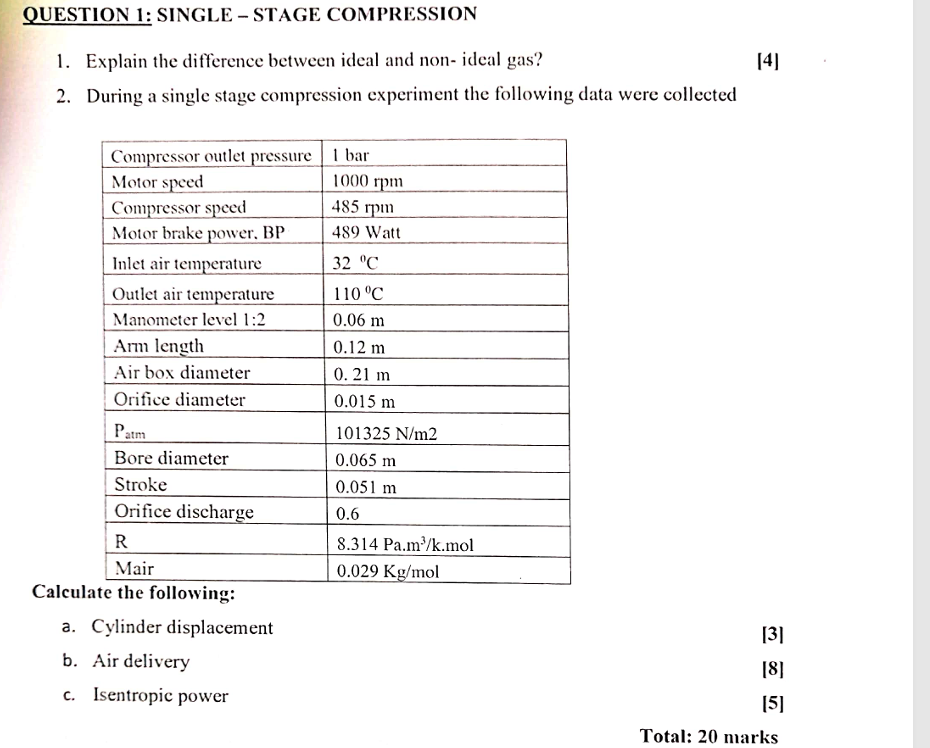

QUESTION 1: SINGLE - STAGE COMPRESSION Explain the difference between ideal and non- ideal gas? [4] During a single stage compression experiment the following data were collected
\table[[Compressor outlet pressure,1 bar],[Motor speed,1000 rpm],[Compressor speed,485 rpm],[Motor brake power. BP,489 Watt],[Inlet air temperature,32\deg C],[Outlet air temperature,110\deg C],[Manometer level 1:2,0.06 m],[Arm length,0.12 m],[Air box diameter,0.21 m],[Orifice diameter,0.015 m],[Patm,101325(N)/(m)2],[Bore diameter,0.065 m],[Stroke,0.051 m],[Orifice discharge,0.6],[R,8.314Pa.(m^(3))/(k)*mol],[Mair,0.029K(g)/(m)ol]]Calculate the following: a. Cylinder displacement [3] b. Air delivery [8] c. Isentropic power [5] Total: 20 marks
