(Solved): Question 6 Unit-Load Method for Frame Analysis Consider the following frame with uniform flexural ri ...

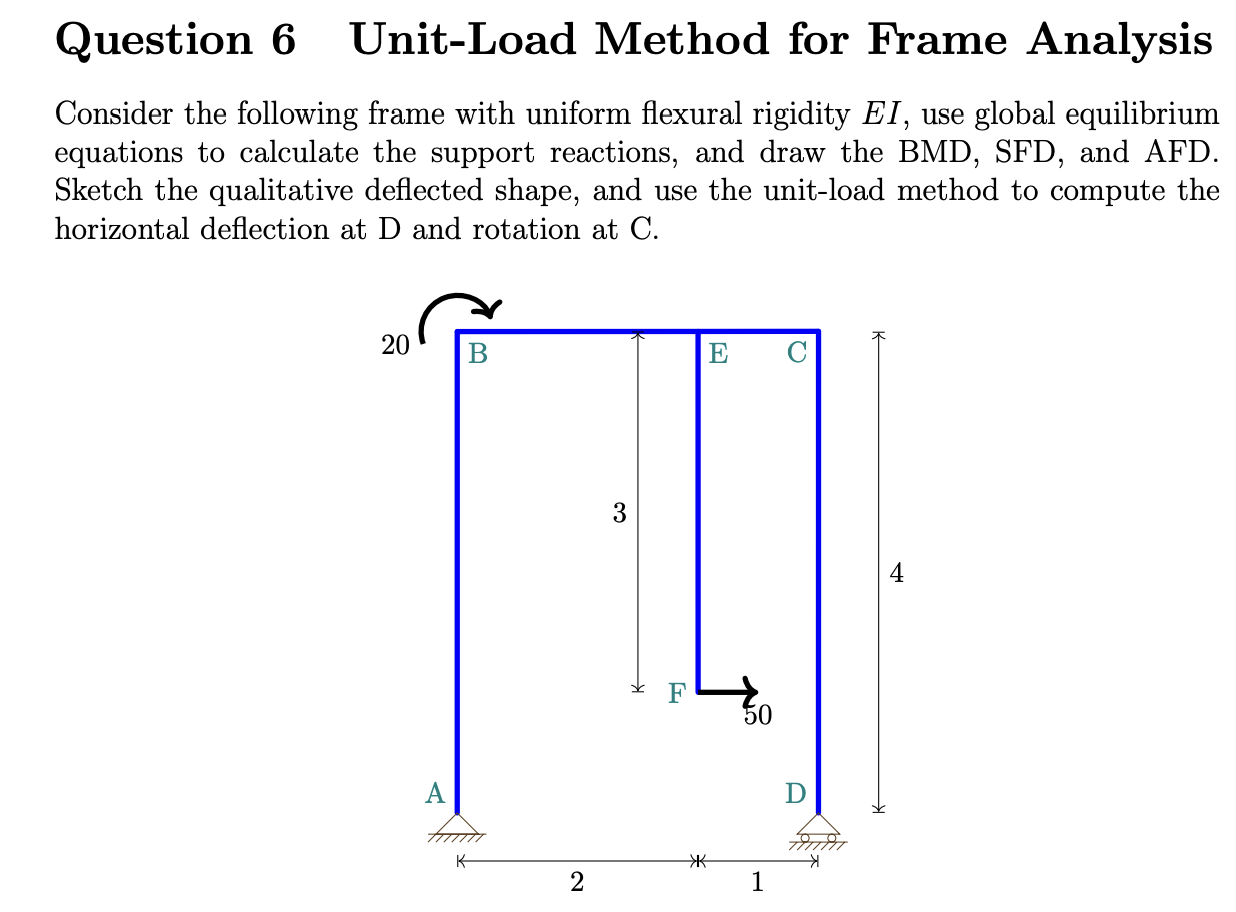

Question 6 Unit-Load Method for Frame Analysis Consider the following frame with uniform flexural rigidity \( E I \), use global equilibrium equations to calculate the support reactions, and draw the \( \mathrm{BMD}, \mathrm{SFD} \), and AFD . Sketch the qualitative deflected shape, and use the unit-load method to compute the horizontal deflection at D and rotation at C.
