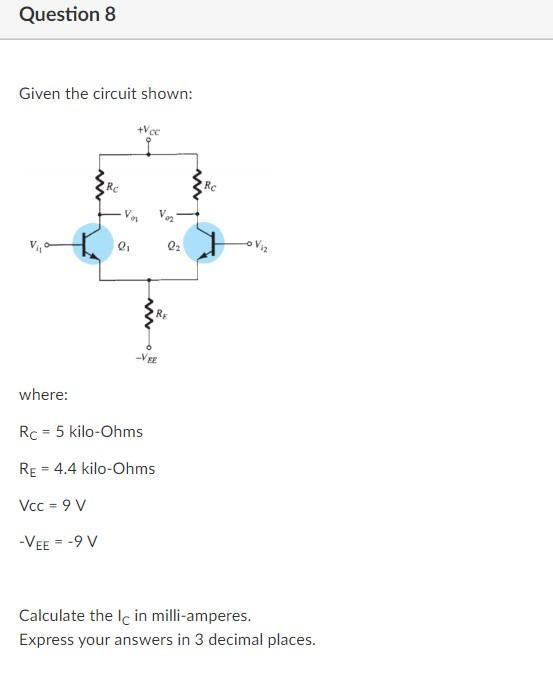

Question 8 Given the circuit shown: where: Vcc = 9 V -VEE = -9 V +Vcc Va 2? Rc 5 kilo-Ohms = RE= 4.4 kilo-Ohms V? VEE Q? Re Viz Calculate the Ic in milli-amperes. Express your answers in 3 decimal places.

Question

Accepted Answer

Expert Answer to -   Question 8 Given the circuit shown: where: Vcc = 9 V -VEE = -9 V +Vcc Va 2 Rc 5 kilo-Ohms = RE=

Answer

Solution for -   Question 8 Given the circuit shown: where: Vcc = 9 V -VEE = -9 V +Vcc Va 2 Rc 5 kilo-Ohms = RE=

Answer

This an additional answer to -   Question 8 Given the circuit shown: where: Vcc = 9 V -VEE = -9 V +Vcc Va 2 Rc 5 kilo-Ohms = RE=

(Solved): Question 8 Given the circuit shown: where: Vcc = 9 V -VEE = -9 V +Vcc Va 2 Rc 5 kilo-Ohms = RE= ...

View Expert Answer

Expert Answer
