(Solved): Question: Describe the functional differences between the circuit in Figure 1 and the circuit in F ...
Question: Describe the functional differences between the circuit in Figure 1 and the circuit in Figure 5. Which design (Figure 1 or Figure 5) you believe would cost less money to manufacture.
Figure 1. Basic Logic Circuit with four inputs A, B, C, and D.

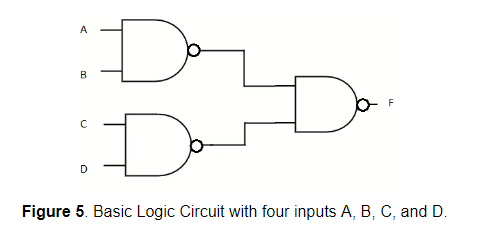

Figure 5. Basic Logic Circuit with four inputs A, B, C, and D.
Expert Answer
Figure 1: The function, F = AB + CD Figure 5: The function, F = ((AB)' . (CD)')' = AB + CD Hence, the both functions represent the same function that is a simp
