(Solved): Question Three (18 marks) An overhang beam ABC of length 6 m is supported and loaded as shown in F ...

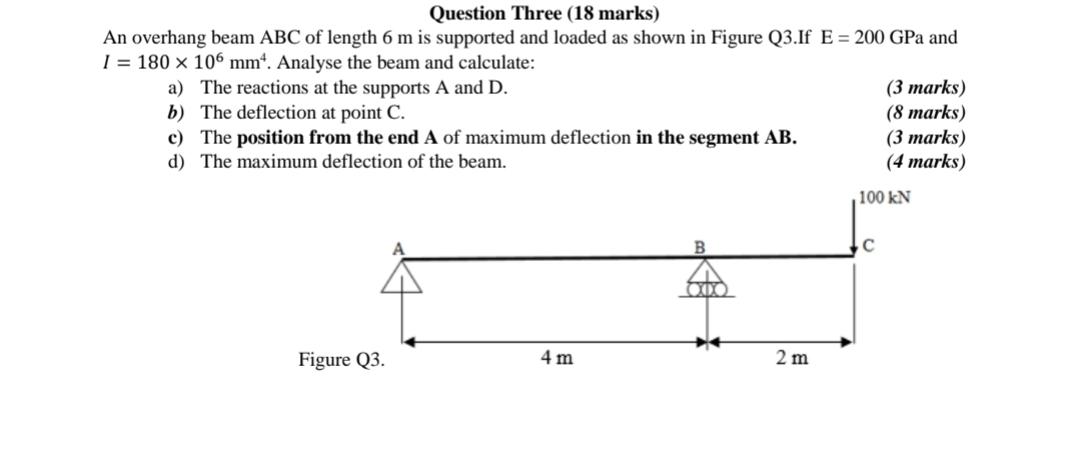

Question Three (18 marks) An overhang beam ABC of length 6 m is supported and loaded as shown in Figure Q3.If E= 200 GPa and I = 180 x 106 mm. Analyse the beam and calculate: a) The reactions at the supports A and D. (3 marks) (8 marks) b) The deflection at point C. (3 marks) c) The position from the end A of maximum deflection in the segment AB. d) The maximum deflection of the beam. (4 marks) Figure Q3. 4 m 2 m 100 kN C
