(Solved): R = 1.0 k, C = 0.005 F, L = 5.0 mH, = 20000 rad/s. What is the ...

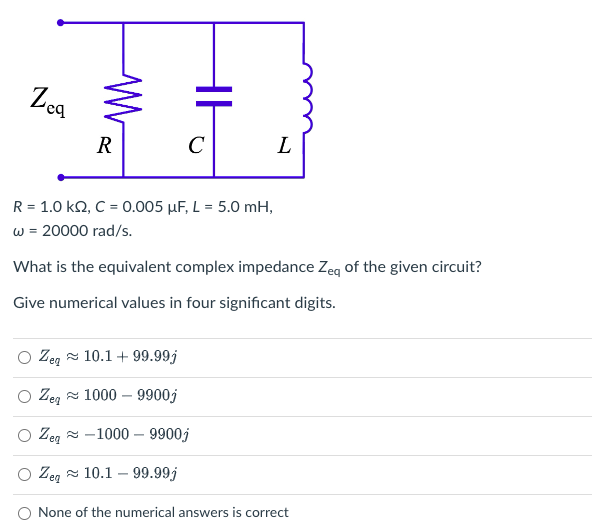

R = 1.0 k?, C = 0.005 ?F, L = 5.0 mH,
? = 20000 rad/s.
What is the equivalent complex impedance Zeq of the given circuit?
Give numerical values in four significant digits.
\[ \begin{array}{l} R=1.0 \mathrm{k} \Omega, C=0.005 \mu \mathrm{F}, L=5.0 \mathrm{mH} \\ \omega=20000 \mathrm{rad} / \mathrm{s} \end{array} \] What is the equivalent complex impedance \( Z_{\text {eq }} \) of the given circuit? Give numerical values in four significant digits. \[ \begin{array}{l} Z_{e q} \approx 10.1+99.99 j \\ Z_{e q} \approx 1000-9900 j \\ Z_{e q} \approx-1000-9900 j \\ Z_{e q} \approx 10.1-99.99 j \end{array} \] None of the numerical answers is correct
