(Solved): Replace the distributed loading shown in (Figure 1) by an equivalent resultant force. Suppose that w ...
Replace the distributed loading shown in (Figure 1) by an equivalent resultant force. Suppose that w1w1 = 3.5 k(N)/(m)k(N)/(m) and w2w2 = 2.5 k(N)/(m)k(N)/(m).
Part A
Replace the distributed loading shown in (Figure 1) by an
equivalent resultant force. Suppose that w_(1)=3.5k(N)/(m)
and w_(2)=2.5k(N)/(m).
Determine the magnitude of the resultant force.
Express your answer to three significant figures and include the appropriate units.
F_(R)= Part B
Determine the direction angle of the resultant force measured counterclockwise from the negative x direction.
Express your answer in degrees to three significant figures.
\theta =

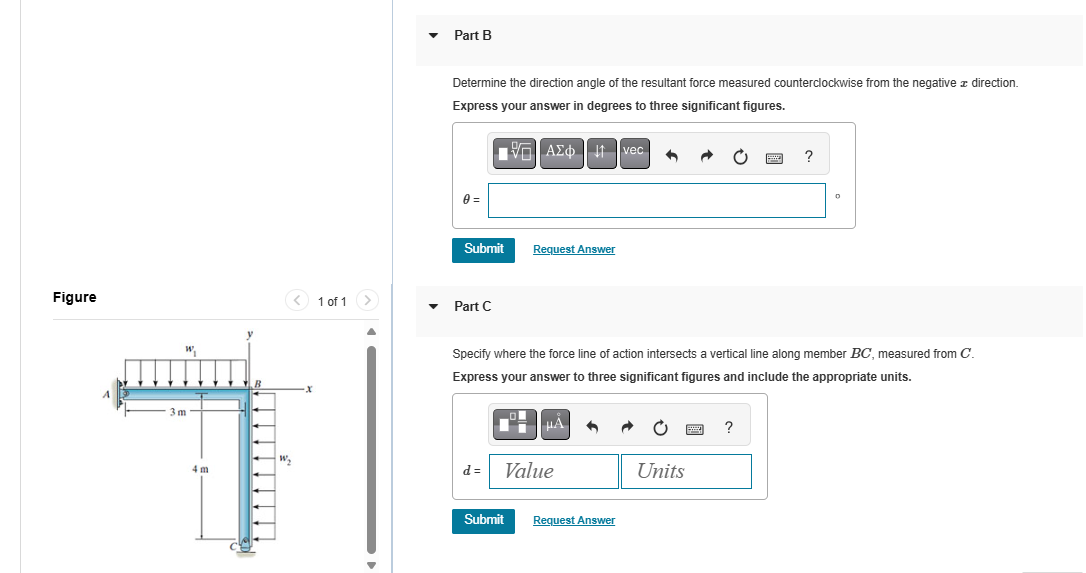

Figure
Part C
Specify where the force line of action intersects a vertical line along member BC, measured from C.
Express your answer to three significant figures and include the appropriate units.
d=|
