(Solved): Sag Curve: A grade from the PVC to the PVI is -6% and from PVI to PVT is +2%. It is required to co ...

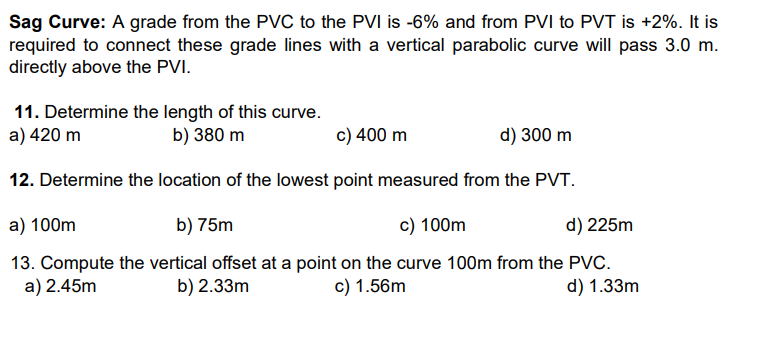

Sag Curve: A grade from the PVC to the PVI is -6% and from PVI to PVT is +2%. It is required to connect these grade lines with a vertical parabolic curve will pass 3.0 m. directly above the PVI. 11. Determine the length of this curve. a) 420 m b) 380 m c) 400 m d) 300 m 12. Determine the location of the lowest point measured from the PVT. a) 100m b) 75m c) 100m d) 225m 13. Compute the vertical offset at a point on the curve 100m from the PVC. a) 2.45m b) 2.33m c) 1.56m d) 1.33m
