Show the step-by-step process and include a free body diagram and kinetic diagram.

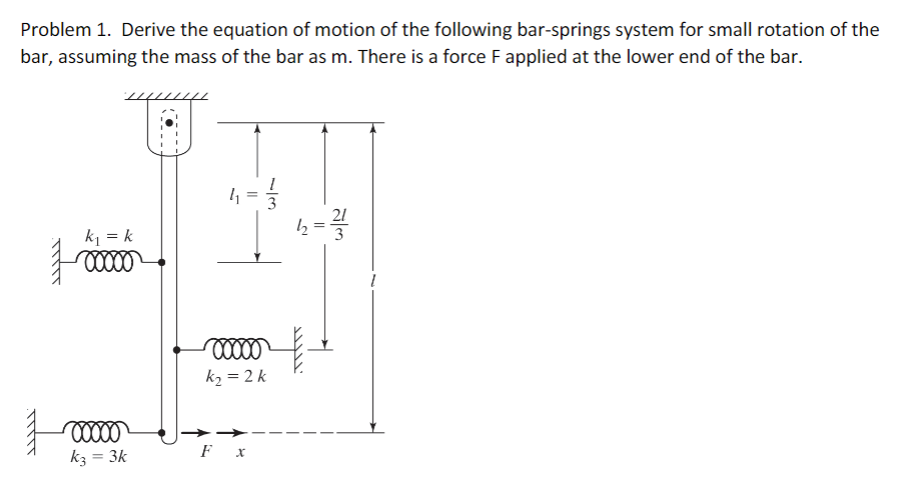

Problem 1. Derive the equation of motion of the following bar-springs system for small rotation of the bar, assuming the mass of the bar as \( \mathrm{m} \). There is a force \( \mathrm{F} \) applied at the lower end of the bar.
