(Solved): sider the following figure. Note: The currents are not necessarily in the direction shown. (Assume ...

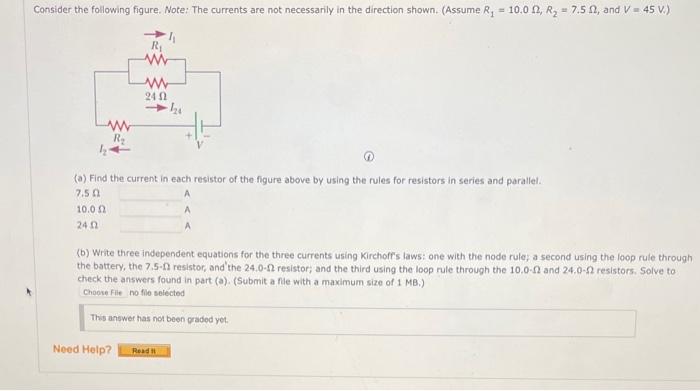

sider the following figure. Note: The currents are not necessarily in the direction shown. (Assume $$R_1=10.0?,R_2=7.5?$$, and $$V=45\mathrm{V}$$ ) (a) Find the current in each resistor of the figure above by using the rules for resistors in series and parallel. (b) Write three independent equations for the three currents using Kirchofr's laws: one with the node rule; a second using the foop rule through the battery, the $$7.5??$$ resistor, and'the $$24.0??$$ resistor; and the third using the loop rule through the $$10.0??$$ and $$24.0??$$ resistors. solve to check the answers found in part (a). (Submit a fle with a maximum size of $$1\mathrm{MB}$$.) no filio selected
