(Solved): Simulate the AC circuits shown below in TINA. Solve each circuit by hand using nodal and mesh analys ...

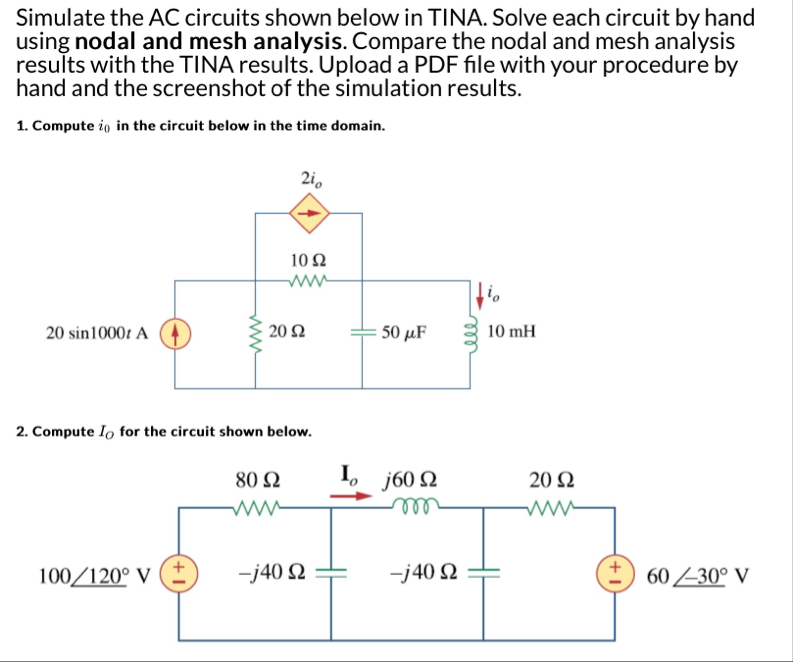

Simulate the AC circuits shown below in TINA. Solve each circuit by hand using nodal and mesh analysis. Compare the nodal and mesh analysis results with the TINA results. Upload a PDF file with your procedure by hand and the screenshot of the simulation results. Compute
i_(0)in the circuit below in the time domain. Compute
I_(O)for the circuit shown below.
