(Solved): The 80-kg ventilation door OD with mass center at G is held in the open position shown by means of a ...

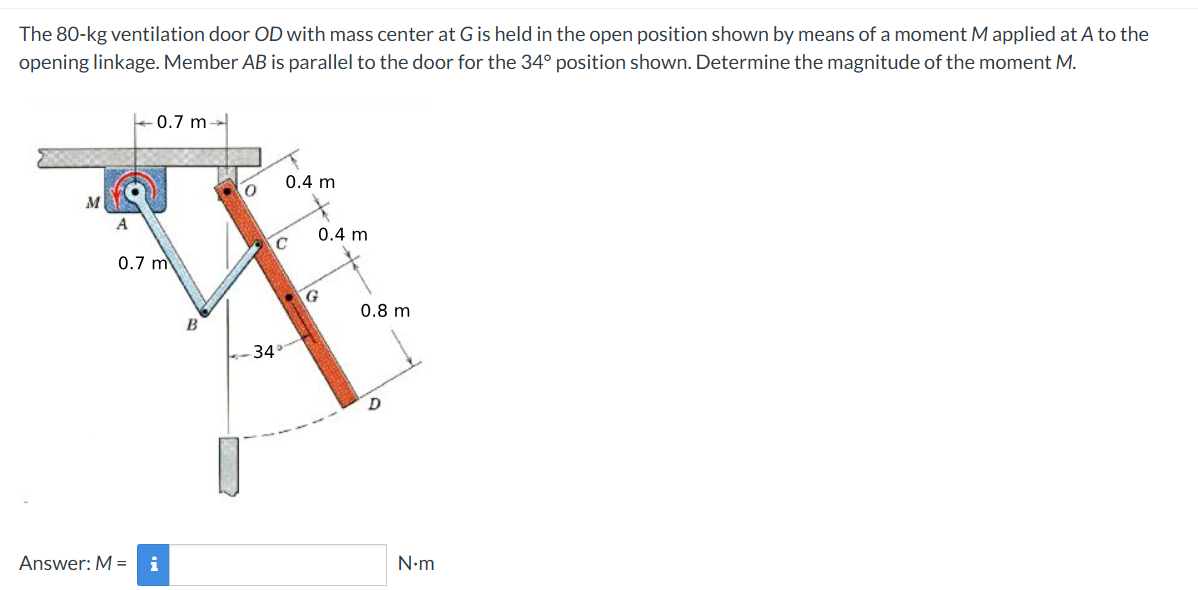

The 80-kg ventilation door OD with mass center at G is held in the open position shown by means of a moment M applied at A to the
opening linkage. Member AB is parallel to the door for the 34\deg position shown. Determine the magnitude of the moment M.
Answer: M=
N*m
