(Solved): The brake shown in the figure below has internal expanding shoes and is 300 mm in diameter. It is ac ...

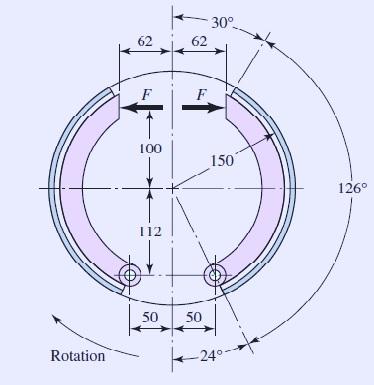

The brake shown in the figure below has internal expanding shoes and is 300 mm in diameter. It is actuated by a mechanism which exerts the same force F on each shoe. The shoes are identical and have a face width of 30 mm. The lining is rigid moulded asbestos having a coefficient of friction of 0.35 and exerts a pressure limitation of 1200 kPa.

1. Draw a detail free body diagram of the component showing all the forces and their respective Cartesian x-y components which is used in your calculations.

2. Calculate the maximum

2.1  Actuating force F.

2.2  Braking capacity.

2.3  Hinge-pin reactions.

3. Explain one way in which the design can modified to increase the braking capacity.
4. Discuss briefly two situations in which this type of brake is applicable   ( Show all workings please)
