(Solved):
The cantilever beam shown in Figure consists of a W530 74 structural steel ...

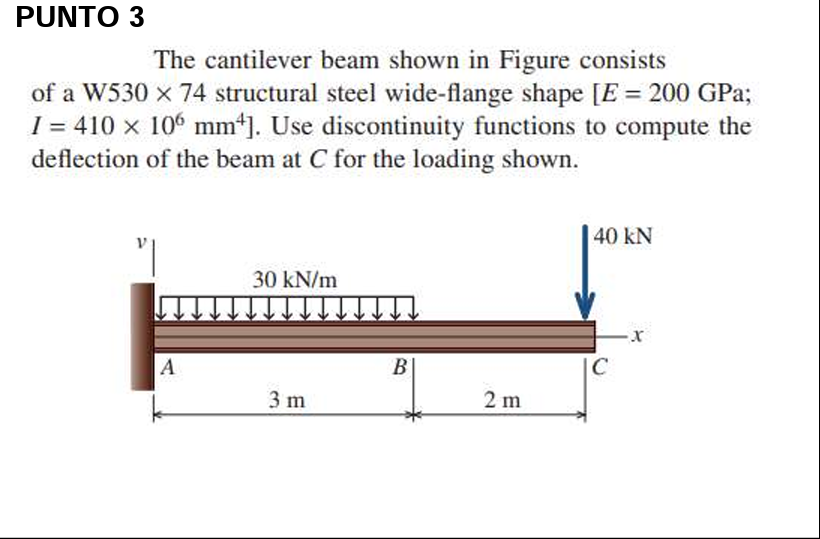

The cantilever beam shown in Figure consists of a W530 ×74 structural steel wide-flange shape [E=200GPa; I=410×106mm4. Use discontinuity functions to compute the deflection of the beam at C for the loading shown.
E = 200 GPa or 200*106 kPaI = 410*106 mm4 or 410*10-6 m4 Length of beam, L = 3+2 = 5 mTaking a section at a distance 'x' from end A,Between B and C, Bending moment equation,
