(Solved): The cross section of a built-up beam is shown. Find the value for Q used to determine shear flow (q= ...

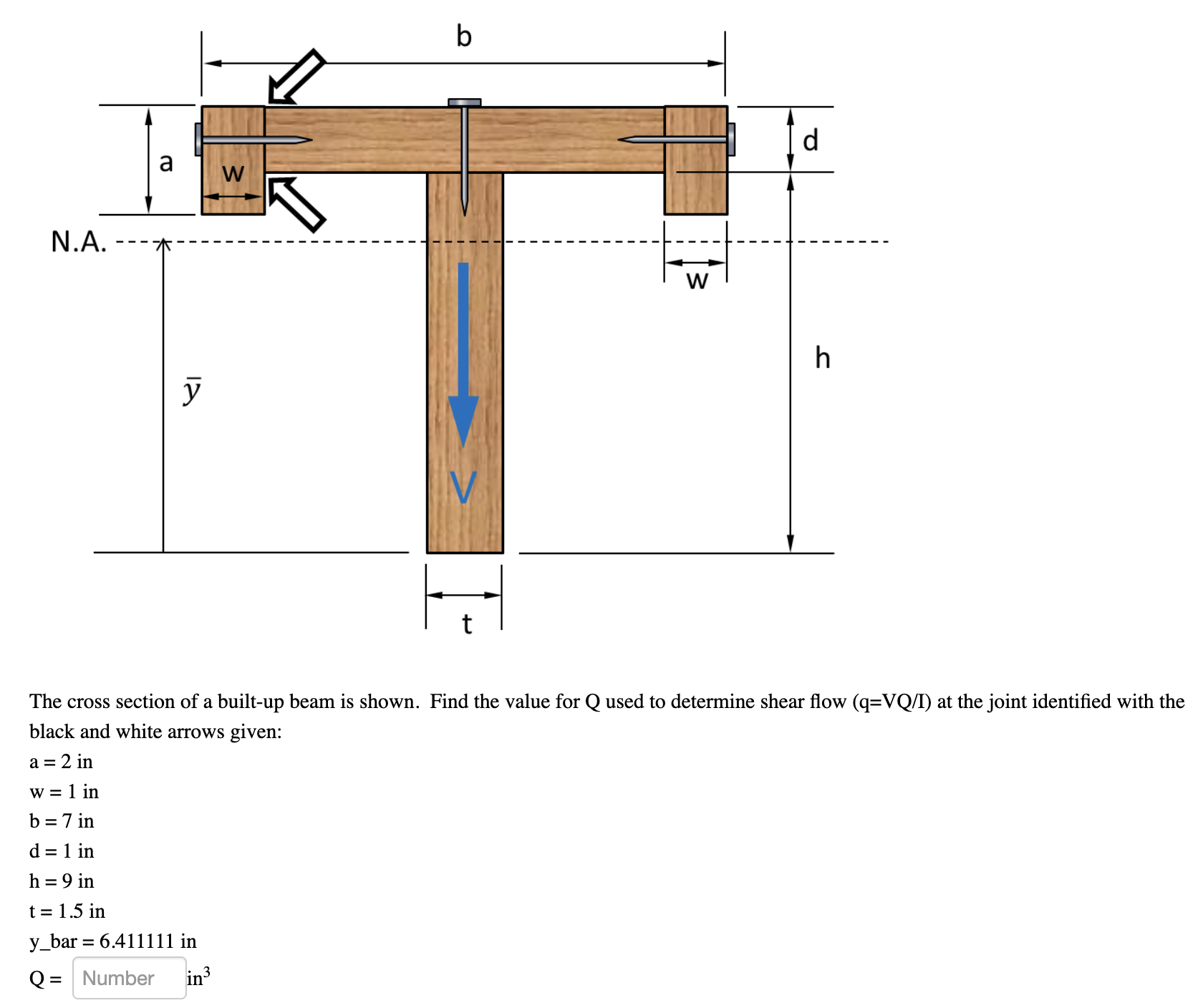

The cross section of a built-up beam is shown. Find the value for Q used to determine shear flow (q=V(Q)/(I)) at the joint identified with the
black and white arrows given:
a=2 in
w=1 in
b=7 in
d=1 in
h=9 in
t=1.5 in
y_(-)bar =6.411111 in
Q=
