(Solved): The drawing shows four different situations in which a light ray is traveling from one medium into a ...

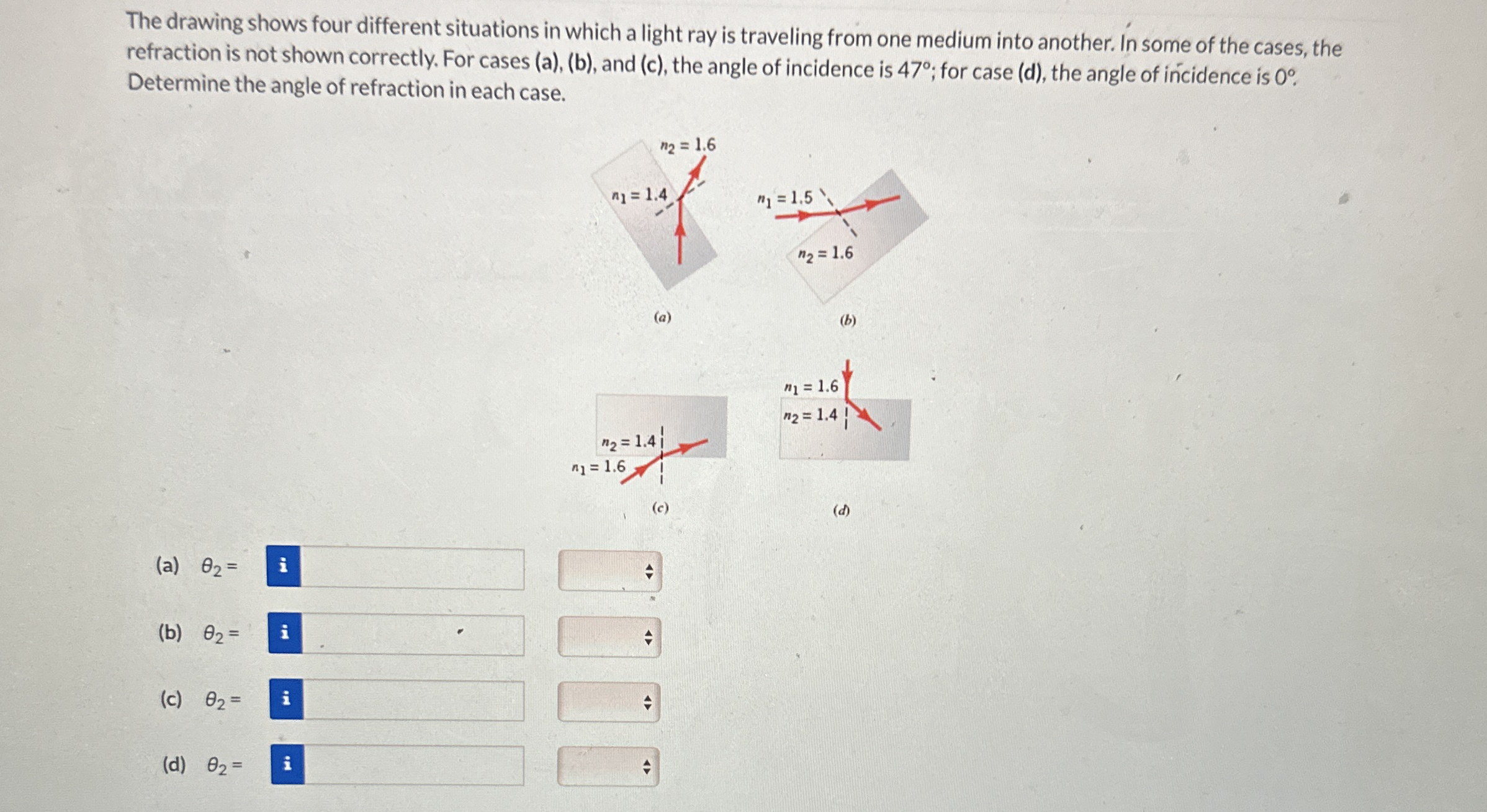

The drawing shows four different situations in which a light ray is traveling from one medium into another. In some of the cases, the refraction is not shown correctly. For cases (a), (b), and (c), the angle of incidence is
47\deg ; for case (d), the angle of incidence is
0\deg . Determine the angle of refraction in each case. (a)
\theta _(2)=(b)
\theta _(2)=(c)
\theta _(2)=(d)
\theta _(2)=
