(Solved): The frame ACD is hinged at A and D and is supported by a cable that passes through a ring at B and i ...

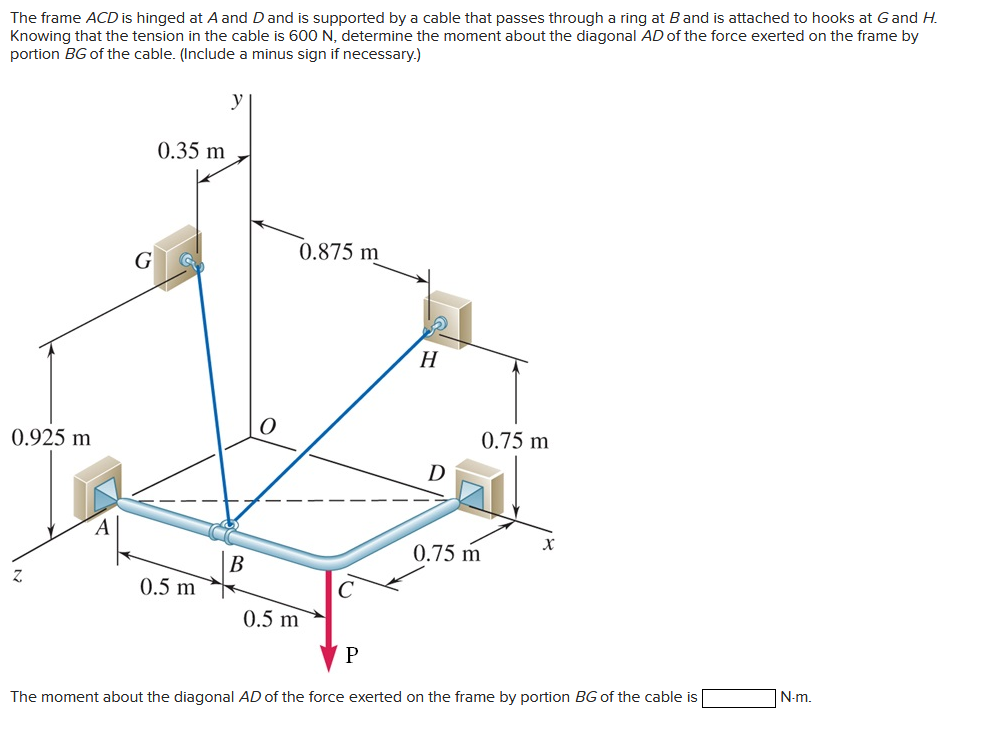

The frame ACD is hinged at A and D and is supported by a cable that passes through a ring at B and is attached to hooks at G and H. Knowing that the tension in the cable is 600 N, determine the moment about the diagonal AD of the force exerted on the frame by portion BG of the cable. (Include a minus sign if necessary.) The frame is pinned to point A on the z-axis and point D on the x-axis. The cables pass through a ring at point B. The coordinates, in meters, of points A, D, G, B, and H, point A (0, 0, 0.75), point D (1, 0, 0), point G (0, 0.925, 0.35), point B (0.5, 0, 0.75), point H (0.875, 0.75, 0). Vector P acts vertically down from point C. The moment about the diagonal AD of the force exerted on the frame by portion BG of the cable is N·m. The frame \( A C D \) is hinged at \( A \) and \( D \) and is supported by a cable that passes through a ring at \( B \) and is attached to hooks at \( G \) and \( H \). Knowing that the tension in the cable is 600 N , determine the moment about the diagonal \( A D \) of the force exerted on the frame by portion BG of the cable. (Include a minus sign if necessary.) The moment about the diagonal \( A D \) of the force exerted on the frame by portion \( B G \) of the cable is N-m. The frame \( A C D \) is hinged at \( A \) and \( D \) and is supported by a cable that passes through a ring at \( B \) and is attached to hooks at \( G \) and \( H \). Knowing that the tension in the cable is 600 N , determine the moment about the diagonal \( A D \) of the force exerted on the frame by portion BG of the cable. (Include a minus sign if necessary.) The moment about the diagonal \( A D \) of the force exerted on the frame by portion \( B G \) of the cable is N-m.
