(Solved): The member is an A-36 steel structural Tee for which I=76.8in4. Suppose that P=3.6k. Use the moment ...



student submitted image, transcription available below

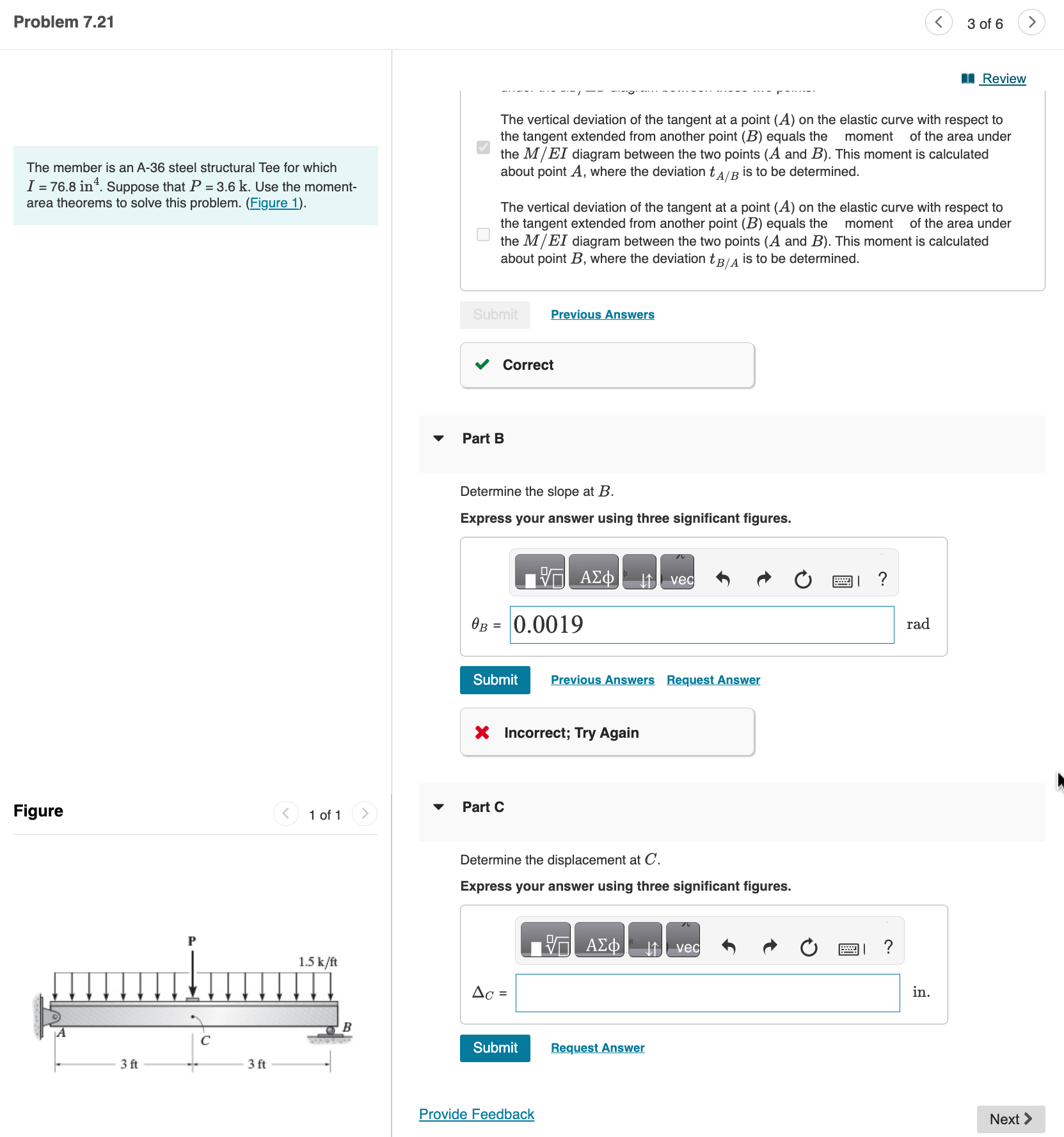

The member is an A-36 steel structural Tee for which . Suppose that . Use the momentarea theorems to solve this problem. The vertical deviation of the tangent at a point on the elastic curve with respect to the tangent extended from another point equals the moment of the area under the diagram between the two points and ). This moment is calculated about point , where the deviation is to be determined. The vertical deviation of the tangent at a point on the elastic curve with respect to the tangent extended from another point equals the moment of the area under the diagram between the two points and ). This moment is calculated about point , where the deviation is to be determined. Part B Determine the slope at . Express your answer using three significant figures. Figure 1 of 1 Incorrect; Try Again Part C Determine the displacement at . Express your answer using three significant figures.
