(Solved): The PAL is a general-purpose programmable device to implement a SOP logical equation The circles ...

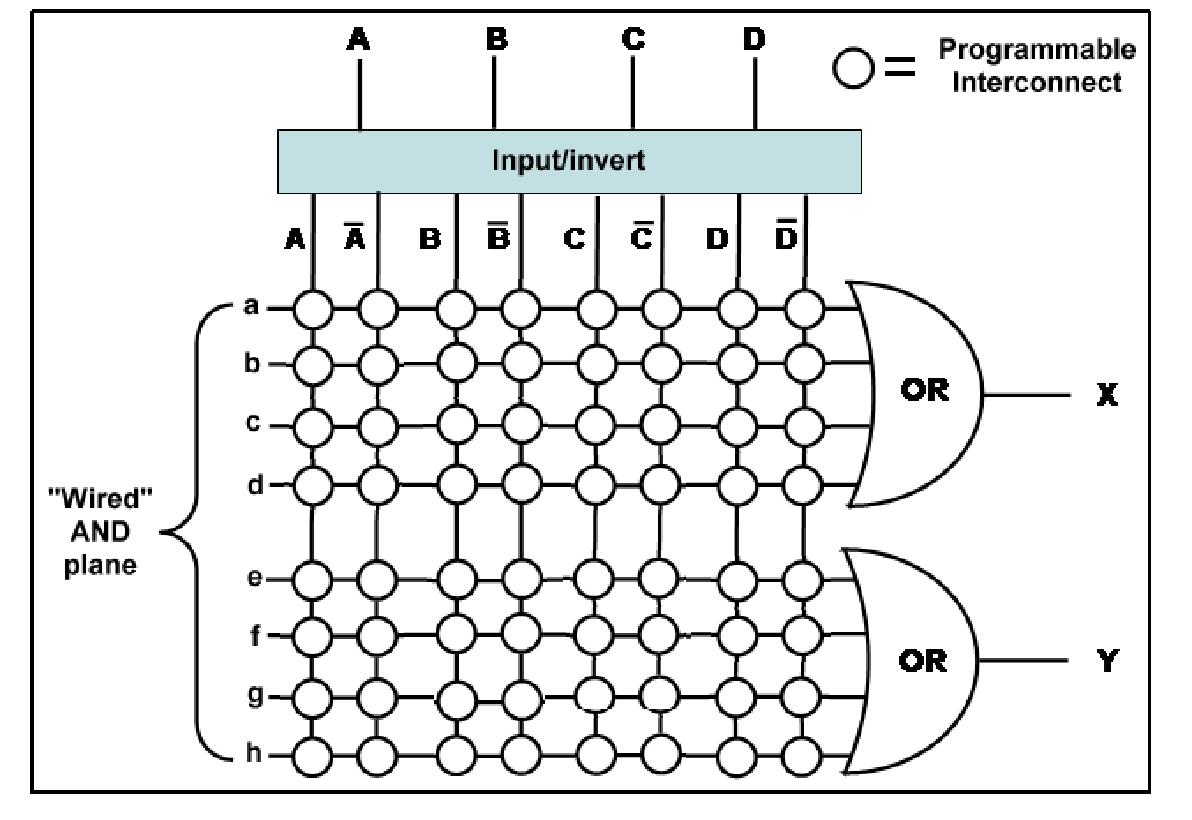

The PAL is a general-purpose programmable device to implement a SOP logical equation ❑ The circles in the figure represent fuses to program the device • The horizontal wires are the AND gates. ❑ The circuit would enable us to create two independent logical equations each containing 4-input AND terms ❑ Newer devices are reprogrammable by replacing fuse technology with FLASH technology
