The system given in the figure is h1=30 cm, h2= 10 cm, h3=70 cm, h4= 20 cm and the settings of the restrictions ?i = 997 kg/m3, ?j=1.25 kg/m3 “It is not fixed!”, ?k = 13600 kg/m3. Since the pressure in line A knows PA = 10 bar, find the Pascal measurement of the pressure in line B.

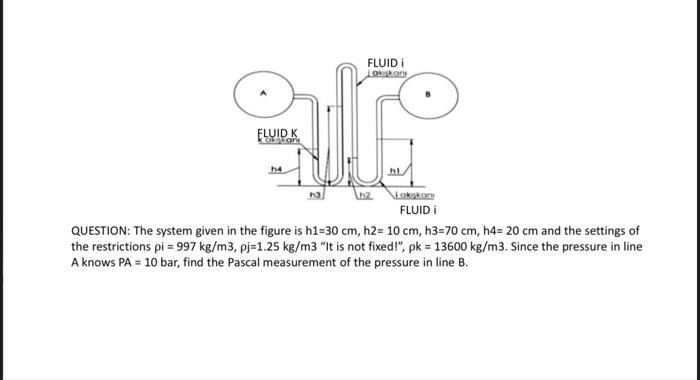

QUESTION: The system given in the figure is \( \mathrm{h} 1=30 \mathrm{~cm}, \mathrm{~h} 2=10 \mathrm{~cm}, \mathrm{~h} 3=70 \mathrm{~cm}, \mathrm{~h} 4=20 \mathrm{~cm} \) and the settings of the restrictions \( \rho i=997 \mathrm{~kg} / \mathrm{m} 3, \rho \mathrm{j}=1.25 \mathrm{~kg} / \mathrm{m} 3 \) "It is not fixed!", \( \rho \mathrm{k}=13600 \mathrm{~kg} / \mathrm{m3} \). Since the pressure in line \( A \) knows \( P A=10 \) bar, find the Pascal measurement of the pressure in line \( B \).
Expert Answer
Calculate the pressure difference between points A and B. Apply the principle of mano
