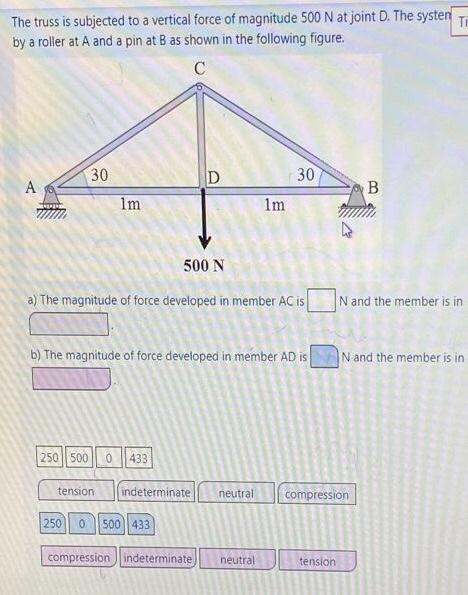

The truss is subjected to a vertical force of magnitude $500 N$ at joint $D$ . The systen by a roller at $A$ and a pin at $B$ as shown in the following figure. a) The magnitude of force developed in member $A C$ is $N$ and the member is in b) The magnitude of force developed in member $A D$ is $N$ and the member is in

Question

The truss is subjected to a vertical force of magnitude

500 N

at joint

D

. The systen by a roller at

A

and a pin at

B

as shown in the following figure. a) The magnitude of force developed in member

A C

is

N

and the member is in b) The magnitude of force developed in member

A D

is

N

and the member is in
