(Solved): The voltage standing wave pattern of loaded lossless transmission line is shown in the figure belo ...

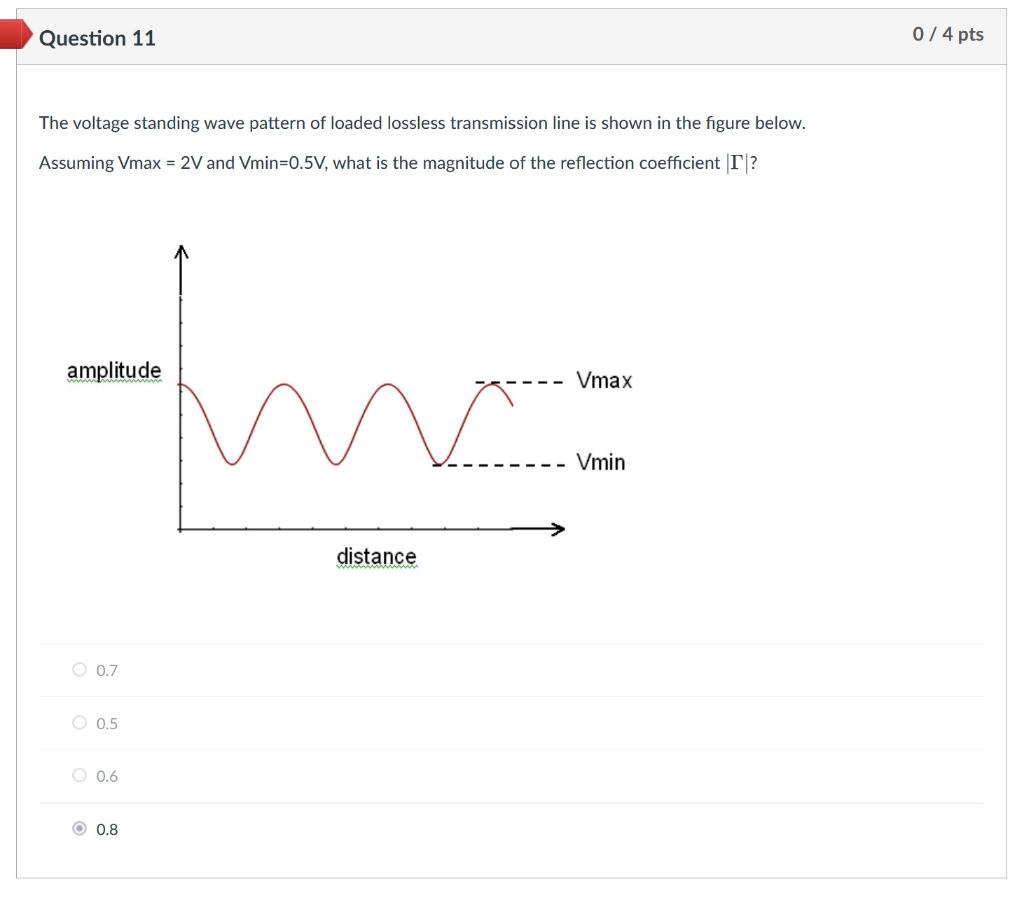

The voltage standing wave pattern of loaded lossless transmission line is shown in the figure below. Assuming \( \mathrm{Vmax}=2 \mathrm{~V} \) and \( \mathrm{Vmin}=0.5 \mathrm{~V} \), what is the magnitude of the reflection coefficient \( |\Gamma| \) ? \( 0.7 \) \( 0.5 \) \( 0.6 \) \( 0.8 \)
