This question is related to Heat Transfer please ans quick!!!!!!

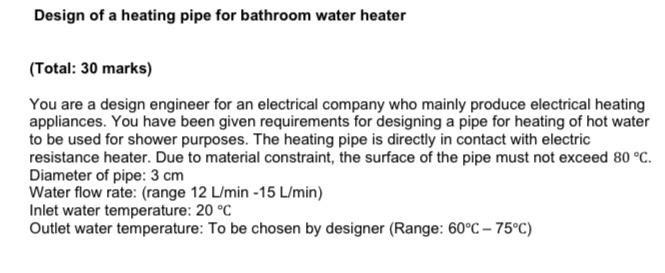

Design of a heating pipe for bathroom water heater (Total: 30 marks) You are a design engineer for an electrical company who mainly produce electrical heating appliances. You have been given requirements for designing a pipe for heating of hot water to be used for shower purposes. The heating pipe is directly in contact with electric resistance heater. Due to material constraint, the surface of the pipe must not exceed 80 °C. Diameter of pipe: 3 cm Water flow rate: (range 12 L/min -15 L/min) Inlet water temperature: 20 °C Outlet water temperature: To be chosen by designer (Range: 60°C -75°C)

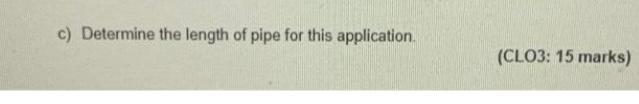

c) Determine the length of pipe for this application. (CLO3: 15 marks)
