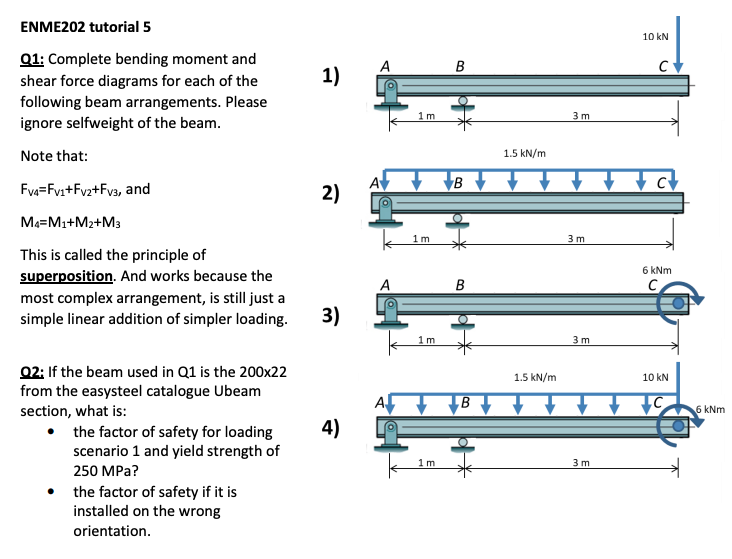

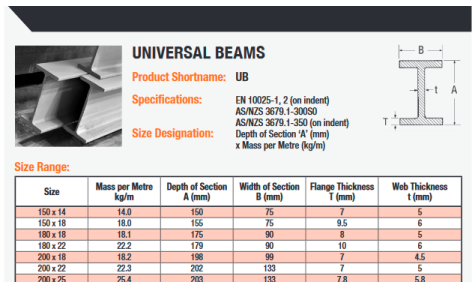

UNIVERSAL BEAMS Product Shortname: UB Specifications: EN 10025-1, 2 (on indent) AS/NZS 3679.1-300S0 AS/NZS 3679.1-350 (on indent) Size Designation: Depth of Section 'A' (mm) x Mass per Metre $$(\mathrm{kg}/\mathrm{m})$$ Size Rance: Q1: Complete bending moment and shear force diagrams for each of the following beam arrangements. Please ignore selfweight of the beam. Note that: $${\mathrm{F}}_{\mathrm{v}4}={\mathrm{F}}_{\mathrm{V}1}+{\mathrm{F}}_{\mathrm{V}2}+{\mathrm{F}}_{\mathrm{v}3}$$, and $${\mathrm{M}}_4={\mathrm{M}}_1+{\mathrm{M}}_2+{\mathrm{M}}_3$$ This is called the principle of superposition. And works because the most complex arrangement, is still just a simple linear addition of simpler loading. Q2: If the beam used in Q1 is the 200x22 from the easysteel catalogue Ubeam section, what is: - the factor of safety for loading scenario 1 and yield strength of $$250\mathrm{MPa}$$ ? - the factor of safety if it is installed on the wrong orientation.
