Use either the current divider rule or mesh analysis to determine the voltage, Vx, in the circuit shown below
Data: R1 = 102,

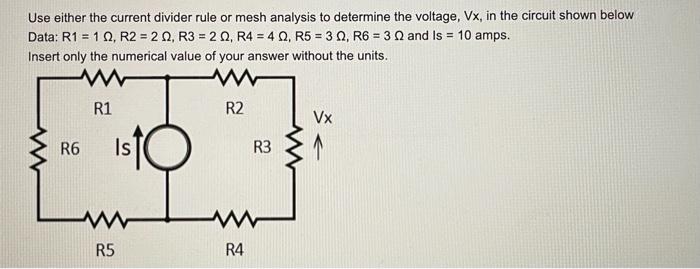

Use either the current divider rule or mesh analysis to determine the voltage, Vx, in the circuit shown below Data: R1 = 102, R2 = 20, R3 = 20, R4 = 4 Q, R5 = 30, R6 = 3 22 and Is = 10 amps. Insert only the numerical value of your answer without the units. www R1 R2 Vx ? R6 Is R5 R3 www R4
