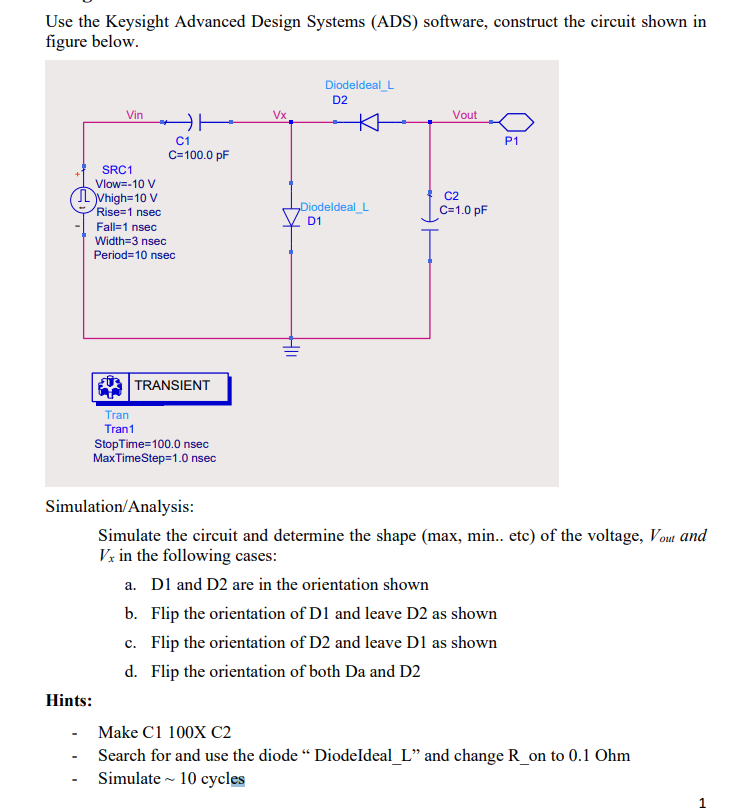

Use the Keysight Advanced Design Systems (ADS) software, construct the circuit shown in figure below. TRANSIENT Tran Tran1 StopTime \( =100.0 \mathrm{nsec} \) MaxTimeStep \( =1.0 \mathrm{nsec} \) Simulation/Analysis: Simulate the circuit and determine the shape (max, min.. etc) of the voltage, \( V_{\text {out }} \) and \( V_{x} \) in the following cases: a. D1 and D2 are in the orientation shown b. Flip the orientation of D1 and leave D2 as shown c. Flip the orientation of D2 and leave D1 as shown d. Flip the orientation of both Da and D 2 Hints: - Make C1 100X C2 - Search for and use the diode " DiodeIdeal_L" and change R_on to 0.1 Ohm - Simulate \( \sim 10 \) cycles
