Using this bridge truss design given could you please create bridge truss with its own appropriate measurements as assigned in the instructions plus more if needed please ????????. Design a two-dimensional truss bridge to connect the 20m span in the figure below, with a pin support at A and a roller support at B. The truss must be able to suppo

Question

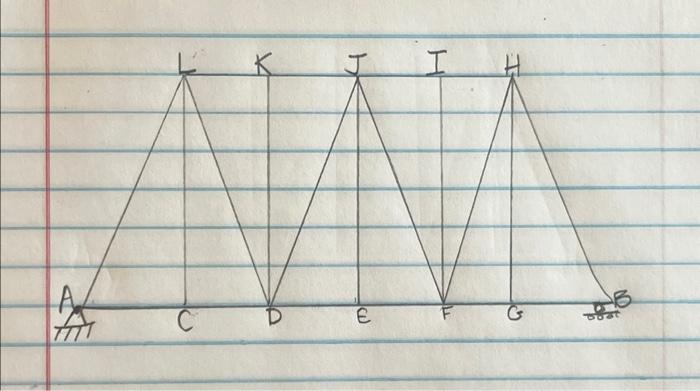

Using this bridge truss design given could you please create bridge truss with its own appropriate measurements as assigned in the instructions plus more if needed please ????????.

student submitted image, transcription available below

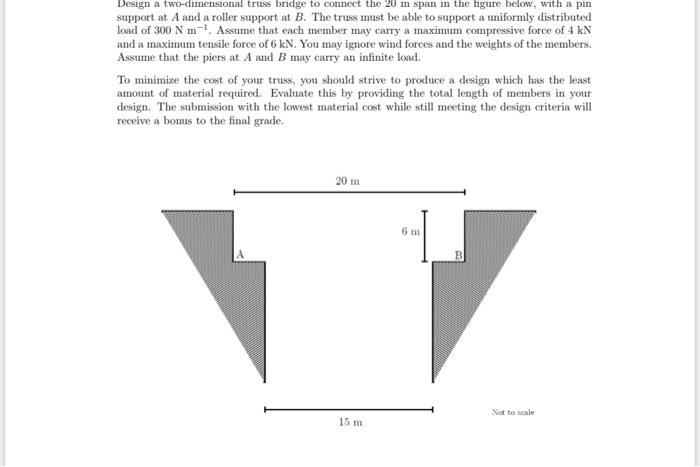

Design a two-dimensional truss bridge to connect the

20 m

span in the figure below, with a pin support at

A

and a roller support at

B

. The truss must be able to support a uniformly distributed load of

300 N m^{- 1}

. Assume that each member may carry a maximum compressive force of

4 kN

and a maximum tensile force of

6 kN

. You may ignore wind forces and the weights of the members. Assume that the piers at

A

and

B

may carry an infinite load. To minimize the cost of your truss, you should strive to produce a design which has the least amount of material required. Evaluate this by providing the total length of members in your design. The submission with the lowest material cost while still meeting the design criteria will receive a bonus to the final grade.
