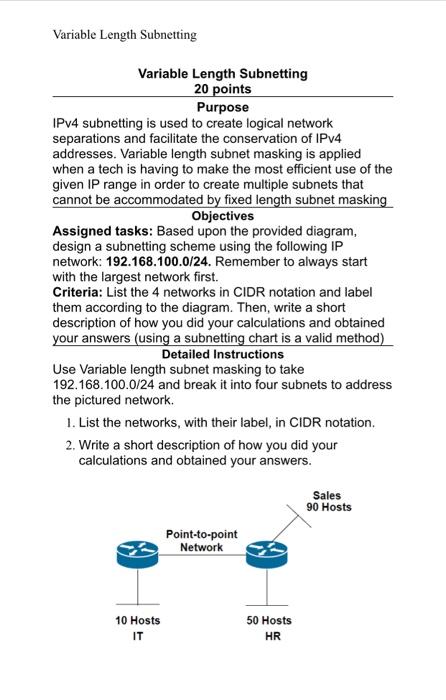

Variable Length Subnetting Variable Length Subnetting 20 points Purpose IPv4 subnetting is used to create logical network separations and facilitate the conservation of IPv4 addresses. Variable length subnet masking is applied when a tech is having to make the most efficient use of the given IP range in order to create multiple subnets that cannot be accommodated by fixed length subnet masking Objectives Assigned tasks: Based upon the provided diagram, design a subnetting scheme using the following IP network: 192.168.100.0/24. Remember to always start with the largest network first. Criteria: List the 4 networks in CIDR notation and label them according to the diagram. Then, write a short description of how you did your calculations and obtained your answers (using a subnetting chart is a valid method) Detailed Instructions Use Variable length subnet masking to take 192.168.100.0/24 and break it into four subnets to address the pictured network. 1. List the networks, with their label, in CIDR notation. 2. Write a short description of how you did your calculations and obtained your answers. Sales 90 Hosts Point-to-point Network 10 Hosts IT 50 Hosts HR
