(Solved): what is initial value of Vc(0) and Vc'(0) ? i think 3 and 0. it's right? And help me to get Vc(t) ...



1. Construct the series LC circuit. Estimate the resonant frequency and compare it with the voltage across the capacitor.
1)

what is initial value of Vc(0) and Vc'(0) ? i think 3 and 0. it's right? And help me to get Vc(t) in 1) and 2)

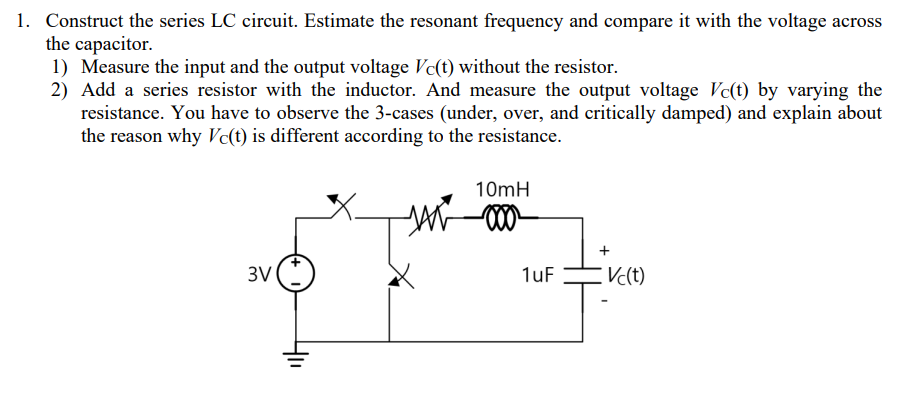

1. Construct the series LC circuit. Estimate the resonant frequency and compare it with the voltage across the capacitor. 1) Measure the input and the output voltage without the resistor. 2) Add a series resistor with the inductor. And measure the output voltage by varying the resistance. You have to observe the 3-cases (under, over, and critically damped) and explain about the reason why is different according to the resistance.


We have an Answer from Expert

View Expert Answer

Expert Answer



(b) Transforming the circuit to laplace domain,
