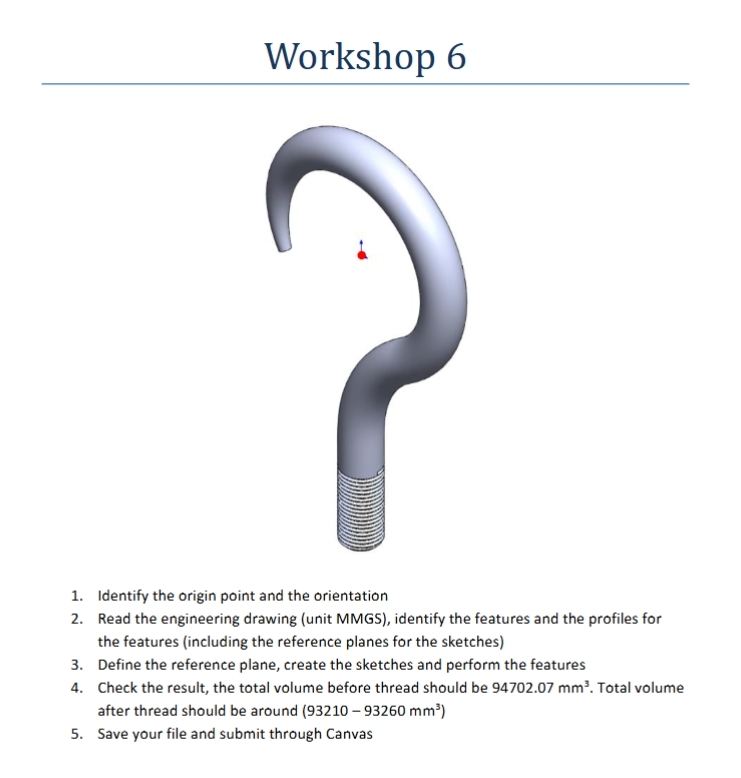

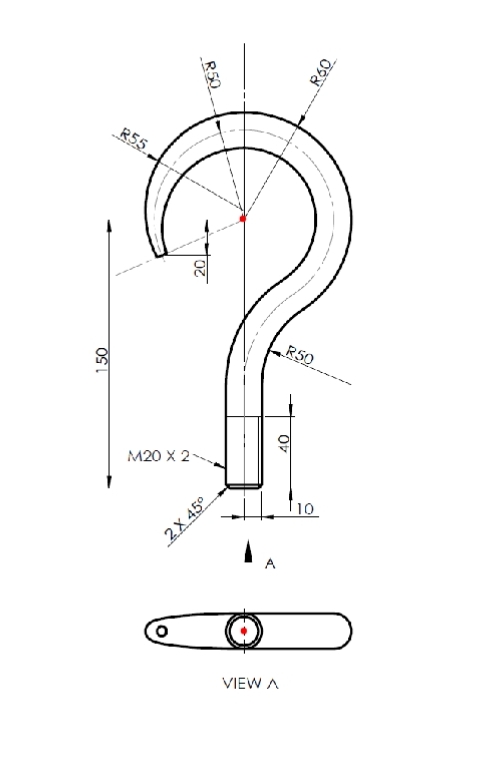

Workshop 6 Identify the origin point and the orientation Read the engineering drawing (unit MMGS), identify the features and the profiles for the features (including the reference planes for the sketches) Define the reference plane, create the sketches and perform the features Check the result, the total volume before thread should be 94702.07mm^(3

Question

Workshop 6 Identify the origin point and the orientation Read the engineering drawing (unit MMGS), identify the features and the profiles for the features (including the reference planes for the sketches) Define the reference plane, create the sketches and perform the features Check the result, the total volume before thread should be

94702.07mm^(3)

. Total volume after thread should be around (

93210-93260mm^(3)

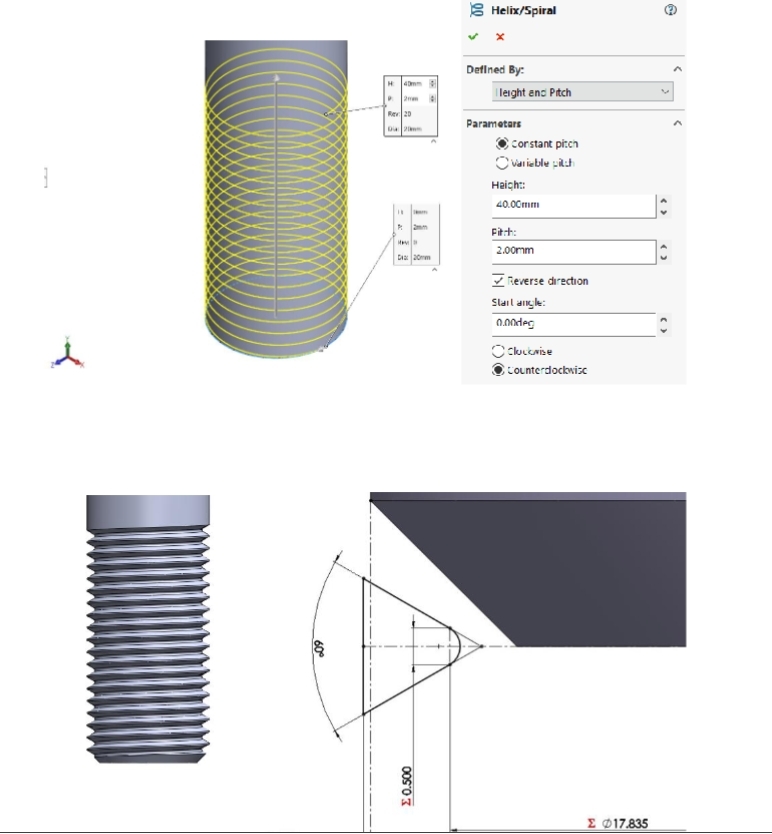

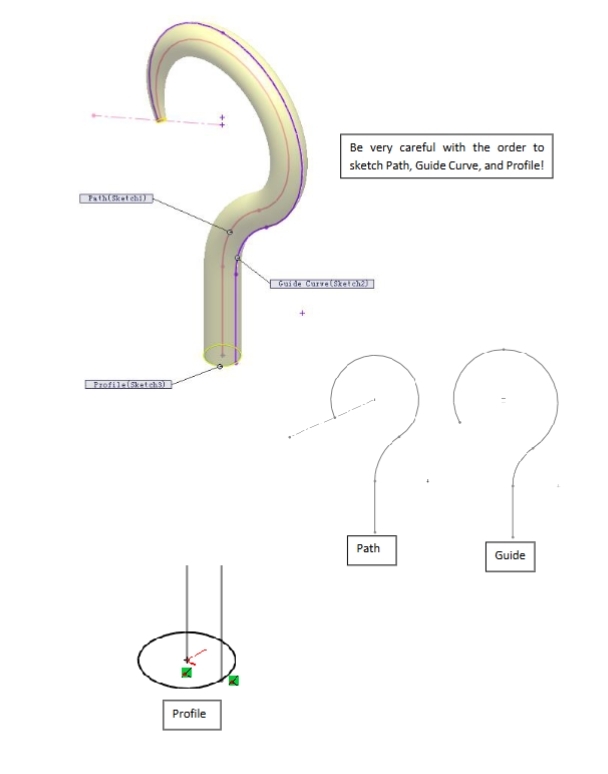

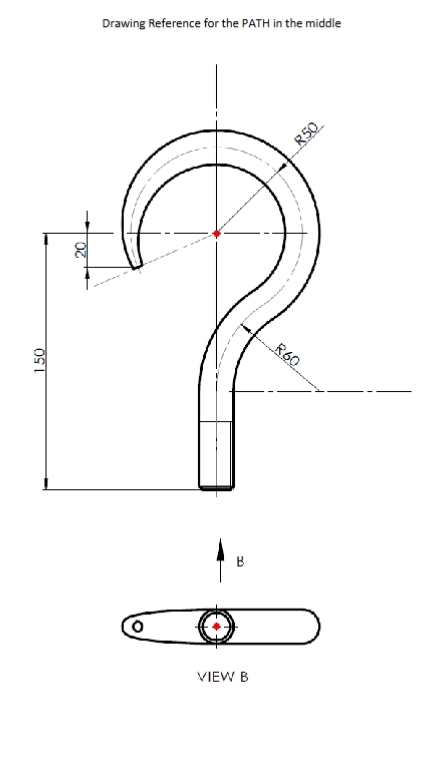

) Save your file and submit through Canvas Be very careful witPathorder toGuide R55M20 X 22XA5VIEWALR50 Drawing Reference for the PATH in the middle VIEW B Helix/Spiral (2) Deflined By: leight ans Pitch Parametars Fitit: 2.00 mm

/bar (◻)

Reverse direction Slail ancyle:
